Technical Specifications
| Model | HBL-ZM800 | HBL-ZM1200D |
|---|---|---|
| Production Capacity | 40–180 pcs/min | 80–320 pcs/min |
| Suitable Materials | 200–600gsm cardboard, PE coated paper, kraft paper, corrugated paper | |
| Paper Length (L) | 100–450 mm (Angle: 5°–40°) | |
| Paper Width (B) | 100–600 mm | 100–400 mm |
| Box Height (H) | 15–200 mm | |
| Power Supply | 380V / 50Hz / 5.5KW | 380V / 50Hz / 6.5KW |
| Machine Weight | 1.8 Tons | 2.5 Tons |
| Machine Dimensions | 3600 × 1400 × 1700 mm | 3600 × 1850 × 1700 mm |

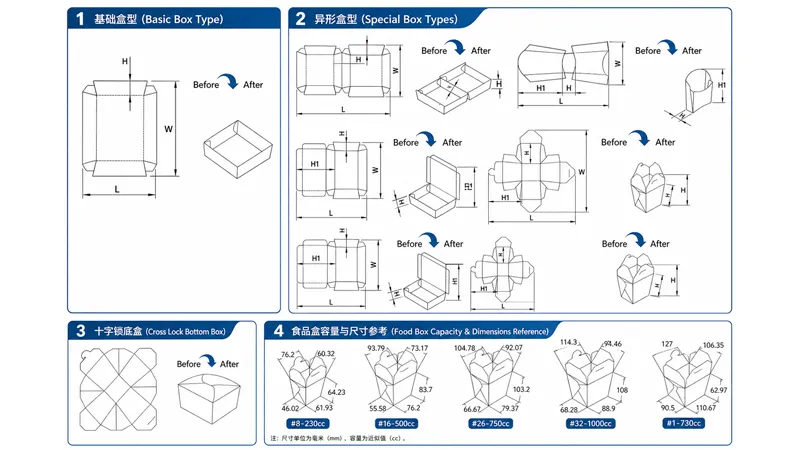

Lunch Box Forming Process
Product Description

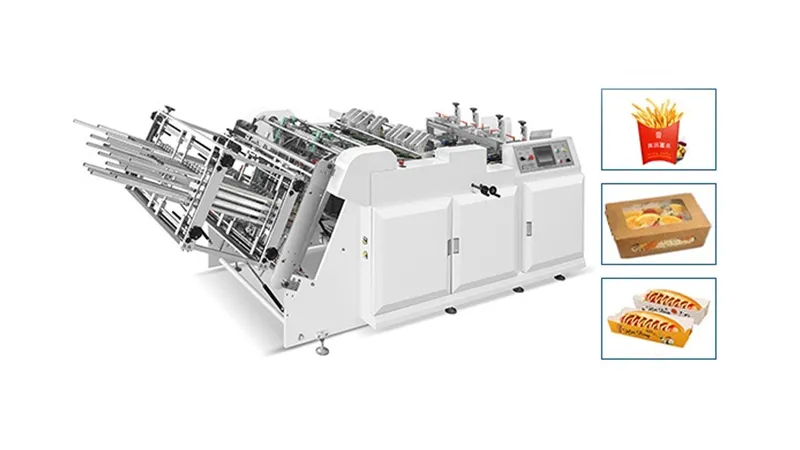

Automatic Lunch Box Forming Machine for Food Packaging Production
The HBL-ZM800/1200D Lunch Box Forming Machine is a fully automatic carton erecting and forming solution designed for high-efficiency food packaging production. It is widely used for manufacturing various takeaway food containers such as hamburger boxes, lunch boxes, french fries boxes, and square food containers.
Wide Material Compatibility for Different Packaging Needs
This machine supports a wide range of materials including cardboard, PE coated paper, kraft paper, and corrugated paper. It allows manufacturers to produce both standard and customized food packaging products while maintaining excellent structural strength and appearance quality.
High-Speed Production with Stable Performance
With a production capacity of up to 320 pcs/min, the machine is suitable for medium to large-scale production lines. The servo control system ensures precise forming, stable operation, and consistent output quality, even at high speeds.
Flexible Box Design with Custom Mold Support
The machine can be equipped with customized forming molds to produce different types and sizes of food boxes. This flexibility allows packaging manufacturers to meet various market demands and expand their product range efficiently.
Advanced Configuration for Reliable Operation
The machine is equipped with key components including feeding system, forming system, glue application system (hot melt or water-based), discharge system, and servo control unit. Its robust structure ensures long-term durability, low noise, and reliable performance in continuous production environments.
