Technical Specifications

Model ZM-800P ZM-1100P
Paper Material 200–800g/㎡ Cardboard, E/N/F Flute Corrugated Board
Speed Range 0–400 m/min 0–400 m/min
Inching Speed 30 m/min 30 m/min
Max Blank Width 800 mm 1100 mm
Machine Dimensions 15300 × 2000 × 1900 mm 17500 × 2300 × 1900 mm
Machine Weight 7.5 Tons 8 Tons
Machine Power 17 KW 17 KW
Compressed Air 6 Bar 6 Bar
Air Compressor Capacity 10 m³/h 10 m³/h
Air Tank Capacity 60 L 60 L

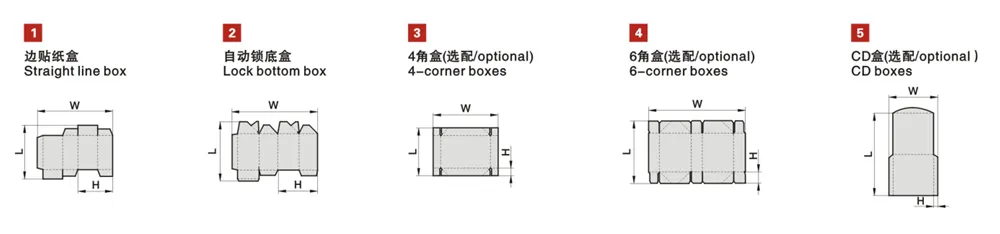

Supported Box Types

Box Type ZM-800P ZM-1100P
Straight Line Box L:100–800 / W:130–800 / H:35–390 mm L:100–800 / W:130–1100 / H:35–480 mm
Lock Bottom Box L:120–800 / W:170–700 / H:80–340 mm L:120–800 / W:170–1000 / H:80–440 mm
4 Corner Box L:150–800 / W:150–700 / H:20–150 mm L:150–800 / W:150–1000 / H:20–150 mm
6 Corner Box L:130–800 / W:240–700 / H:25–150 mm L:130–800 / W:240–1000 / H:25–150 mm
CD Box L:130–600 / W:100–500 / M:12–30 mm L:130–600 / W:100–500 / M:12–30 mm
Supported Box Types

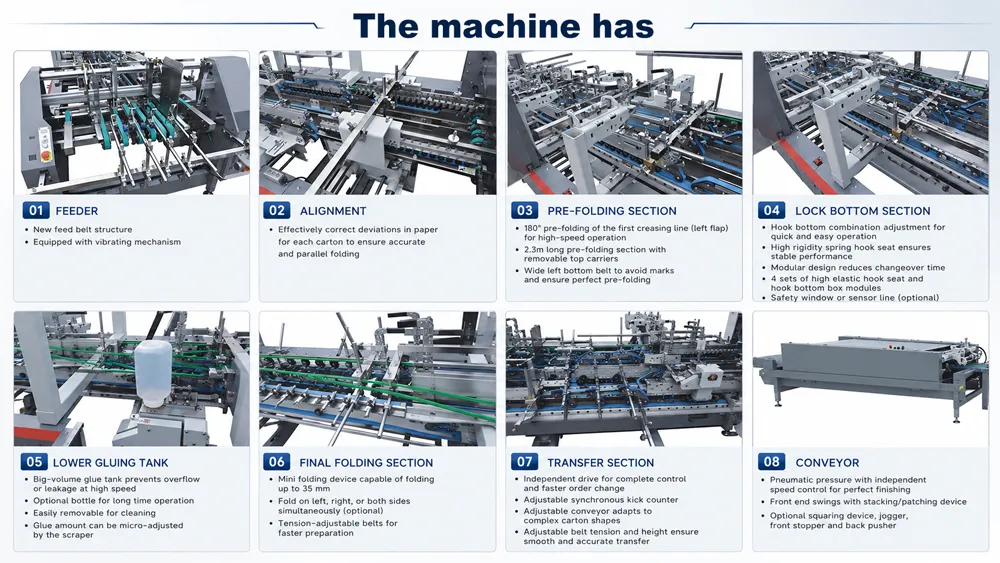

Machine Structure

  • Feeder: New feed belt structure with vibrating mechanism and independent transmission
  • Alignment Section: Corrects carton deviation for accurate folding
  • Pre-Folding Section: Supports 180° pre-folding for faster carton opening and better forming
  • Lock Bottom Section: High rigidity spring hook structure for stable lock bottom box production
  • Lower Gluing Tank: Large capacity glue tank with micro-adjustment and optional glue bottle
  • Final Folding Section: Flexible folding adjustment for different carton types
  • Transfer Section: Independent drive system for smooth carton transfer and quick order changes
  • Conveyor: Pneumatic pressure system ensures strong and consistent carton bonding
Details and Functions

Product Description

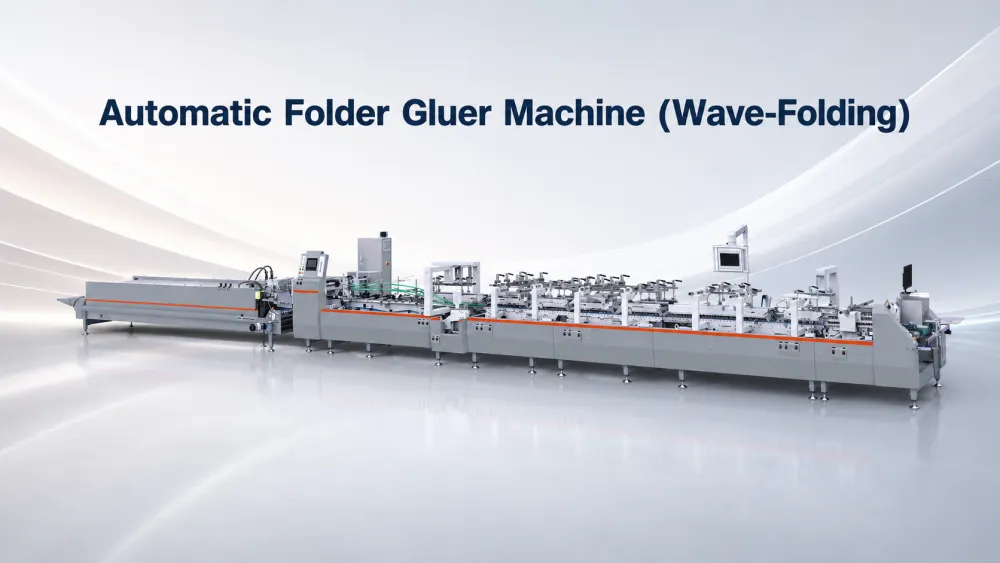

Automatic Folder Gluer Machine for Carton Box Production

The ZM-800P/1100P Folder Gluer Machine is designed for automatic folding and gluing of cardboard and corrugated carton boxes. It is suitable for various box types including straight line boxes, lock bottom boxes, 4-corner boxes, and 6-corner boxes.

Wide Compatibility for Different Carton Structures

The machine supports both cardboard and E/N/F flute corrugated board, allowing manufacturers to produce a wide range of packaging products for food, cosmetics, pharmaceutical, and retail industries.

High-Speed Automatic Production up to 400 m/min

With a production speed up to 400 meters per minute, the machine provides stable folding and gluing performance for medium and large-scale carton production.

Modular Design for Faster Job Changeover

The modular structure reduces setup and conversion time, making it easier to switch between different carton styles and production requirements.

Advanced Folding and Gluing System

Equipped with feeder, alignment, pre-folding, lock bottom, transfer, and conveyor sections, the machine ensures accurate folding, stable gluing, and high-quality finished cartons.

Product Video

FAQ: ZM-800P-1100P Automatic Folder Gluer Machine for Carton Boxes

This machine supports straight line boxes, lock bottom boxes, 4-corner boxes, 6-corner boxes, and special-shaped cartons.
Yes. The machine supports E/N/F flute corrugated board as well as cardboard materials from 200–800g/㎡.
The main difference is the maximum blank width. ZM-800P supports up to 800mm, while ZM-1100P supports up to 1100mm.
Yes. The machine can be equipped with an optional 4 & 6 corner folding system for complex carton structures.
Yes. Customized configurations are available based on your carton style, production requirements, and factory setup.

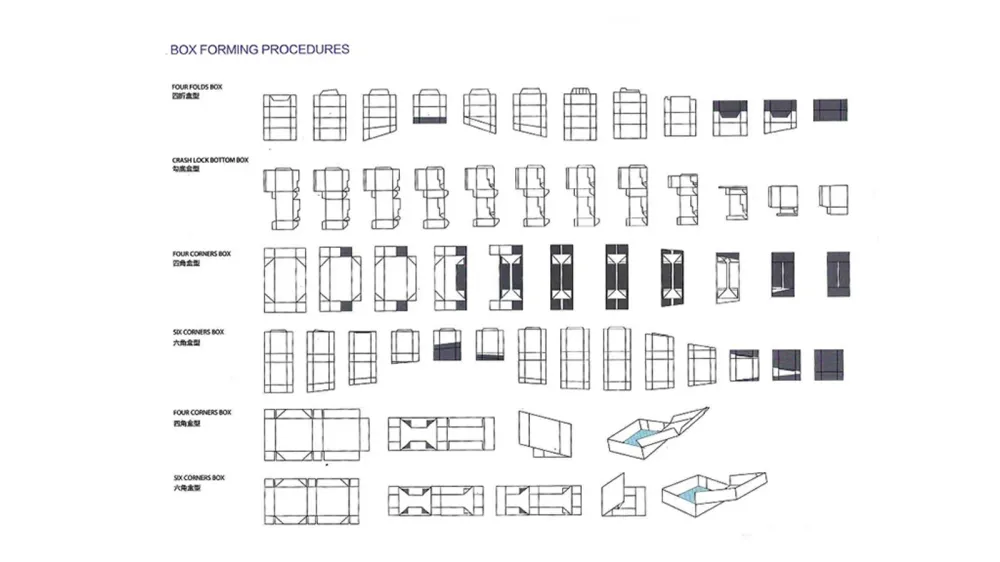

Applications

  • Food packaging boxes
  • Cosmetic folding cartons
  • Medicine and pharmaceutical cartons
  • E-commerce and retail packaging boxes
  • Corrugated display cartons
  • Industrial packaging cartons
