Technical Specifications

Model ZM-1200Z ZM-1450Z ZM-1700Z
Paper Material 250–800g/㎡ Cardboard, E/C/B Flute Corrugated Board
Speed Range 0–200 m/min 0–200 m/min 0–200 m/min
Inching Speed 30 m/min 30 m/min 30 m/min
Max Blank Width 1200 mm 1450 mm 1700 mm
Machine Dimensions 20800 × 2500 × 2100 mm 20800 × 2800 × 2100 mm 22800 × 3100 × 2100 mm
Machine Weight 13.5 Tons 14.5 Tons 15.5 Tons
Machine Power 54 KW 56 KW 56 KW
Compressed Air 6 Bar
Air Compressor Capacity 10 m³/h
Air Tank Capacity 60 L

Supported Box Types

Box Type Supported
Straight Line Box Yes
Lock Bottom Box Yes
Flat Mouth Box Yes
4 Corner Box Yes
6 Corner Box Yes
CD Box Yes
Supported Box Types

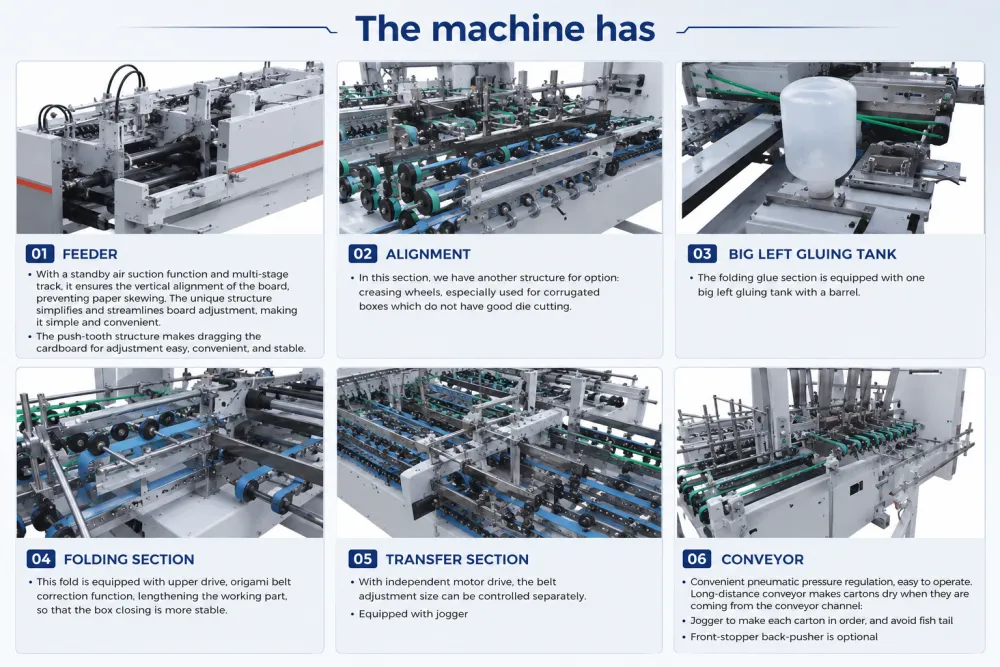

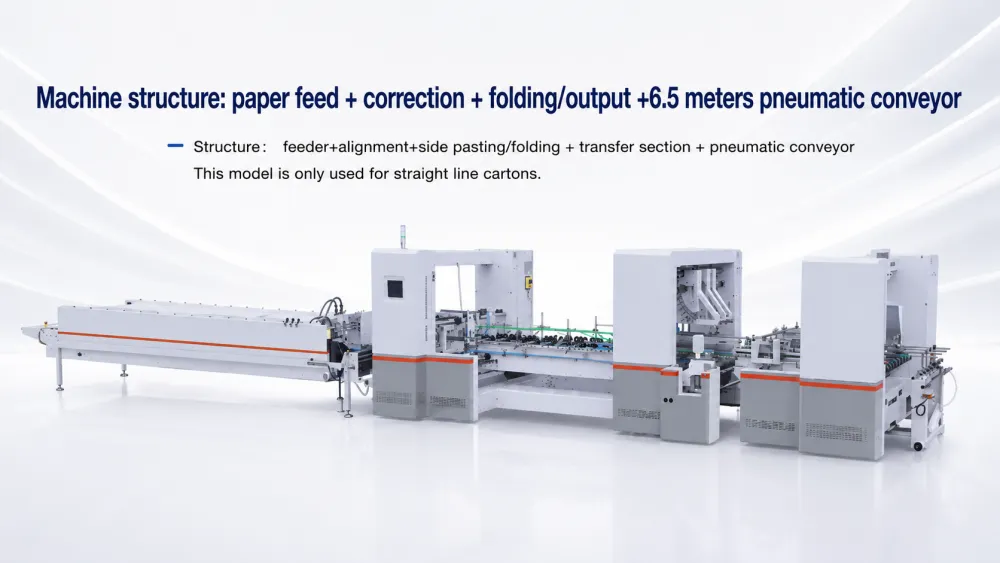

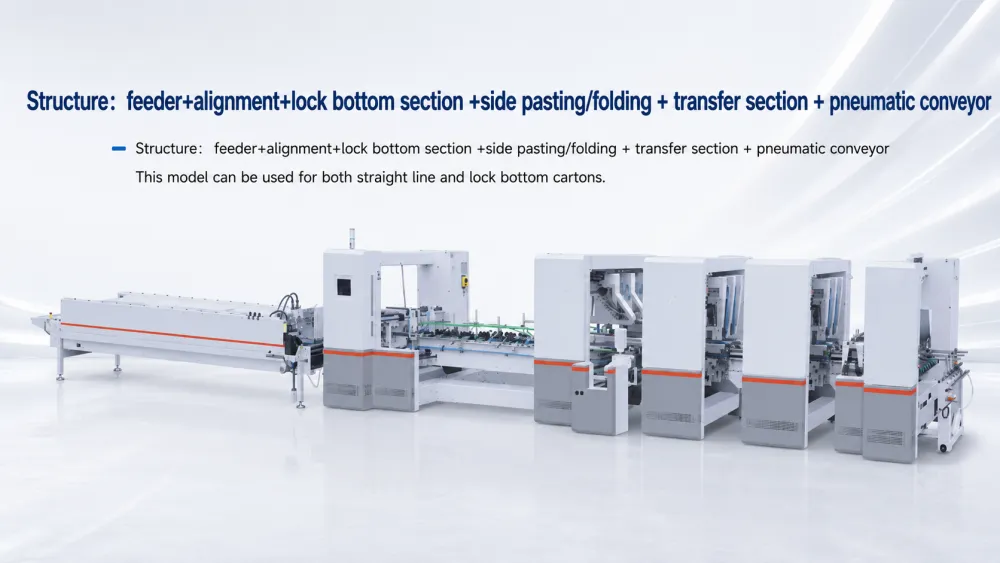

Machine Structure

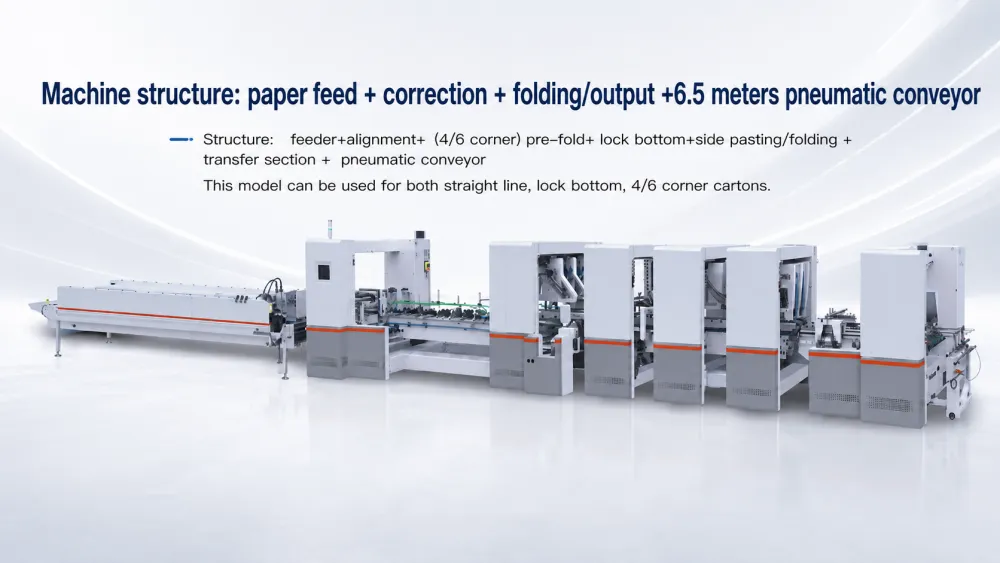

  • Feeder: Air suction feeder with multi-stage track for stable board feeding and anti-skew performance
  • Alignment Section: Optional creasing wheel system for corrugated cartons with imperfect die cutting
  • Big Left Gluing Tank: Large glue tank with barrel for stable long-time gluing operation
  • Folding Section: Upper drive system with origami belt correction for stable carton folding
  • Transfer Section: Independent motor drive with jogger system for smooth carton transfer
  • Conveyor: Long pneumatic conveyor for carton drying and stable finished box delivery
machine details and features

Product Description

Heavy Duty Folder Gluer Machine for Large Carton Production

The ZM-1200Z/1450Z/1700Z Folder Gluer Machine is designed for heavy-duty cardboard and corrugated carton production. It supports large carton sizes and complex folding structures for industrial packaging applications.

Supports Multiple Carton Structures

This machine can produce straight line boxes, lock bottom cartons, flat mouth boxes, 4-corner cartons, and 6-corner cartons. It is suitable for a wide range of packaging industries.

Servo Driven Modular Design for Stable Performance

Each module is independently driven by servo motors, ensuring accurate folding, stable carton transport, and flexible configuration according to different production requirements.

Designed for Heavy Duty Corrugated Packaging

The machine is specially developed for heavy cardboard and E/C/B flute corrugated board, making it ideal for industrial, logistics, and retail packaging production.

Efficient Automatic Folding and Gluing System

With feeder, alignment, gluing, folding, transfer, and pneumatic conveyor sections, the machine ensures stable production and high-quality carton bonding.

Product Video

FAQ: ZM-1200Z/1450Z/1700Z Heavy Duty Folder Gluer Machine

This machine supports straight line boxes, lock bottom cartons, flat mouth boxes, 4-corner boxes, and 6-corner cartons.
Yes. It supports E/C/B flute corrugated board and heavy-duty cardboard materials for industrial carton production.
The main difference is the maximum carton width capacity, ranging from 1200mm to 1700mm for different production needs.
Yes. Each module is independently driven by servo motors for stable, accurate, and efficient operation.
Yes. Customized configurations are available according to carton type, production speed, and factory requirements.

Applications

  • Heavy-duty corrugated packaging boxes
  • Food and beverage cartons
  • Industrial shipping cartons
  • E-commerce packaging boxes
  • Retail and display cartons
  • Large cardboard packaging boxes
