Technical Specifications

Item Specification
Model ZMH-1210
Material Thickness 2.5–7 mm Cardboard, A/B/E/F Flute Corrugated Board
Production Speed 20–50 Boxes/min
Cardboard Stacking Height 280 mm
Stacked Weight 30 kg
Glue Capacity 8 L
Noise Level ≤100 dB
Machine Dimensions 3280 × 4450 × 2100 mm
Machine Weight 1.6 Tons
Machine Power 12 KW
Power Supply 380V / 50Hz
Air Source 380 L/min

Supported Box Specifications

Parameter Range
Package Size A 370–1000 mm
Package Size B 500–1100 mm
Carton Length (L) 180–650 mm
Carton Width (W) 180–470 mm
Carton Height (H) 60–230 mm
Packaging Boxes Specifications

Machine Features

  • Imported Glue Spraying System: Equipped with automatic glue compensation for stable bonding quality
  • Folding Knife Device: Supports multiple corrugated tray and box structures
  • Automatic Feeding System: Bottom suction feeding with automatic forming, conveying, and stacking
  • PLC Intelligent Control: Integrated with photoelectric tracking and gas source detection system
  • Quick Mold Change: Easy switching between different fruit and vegetable tray designs

Product Description

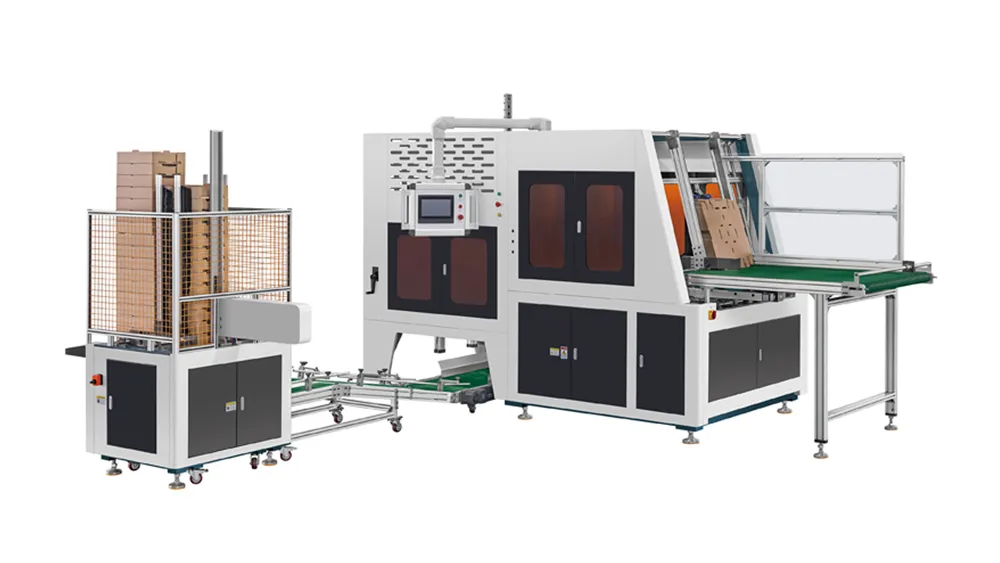

Automatic Corrugated Tray Forming Machine for Agricultural Packaging

The ZMH-1210 Corrugated Tray Forming Machine is designed for automatic production of corrugated trays and packaging boxes used in fruit, vegetable, and agricultural product packaging.

Suitable for Various Corrugated Tray Designs

This machine supports multiple tray structures and can produce different fruit and vegetable boxes through quick mold changes, making it ideal for flexible packaging production.

Stable Automatic Production with PLC Control

Equipped with PLC control system, photoelectric tracking, and human-machine interface, the machine automates the entire forming process for improved efficiency and reduced labor cost.

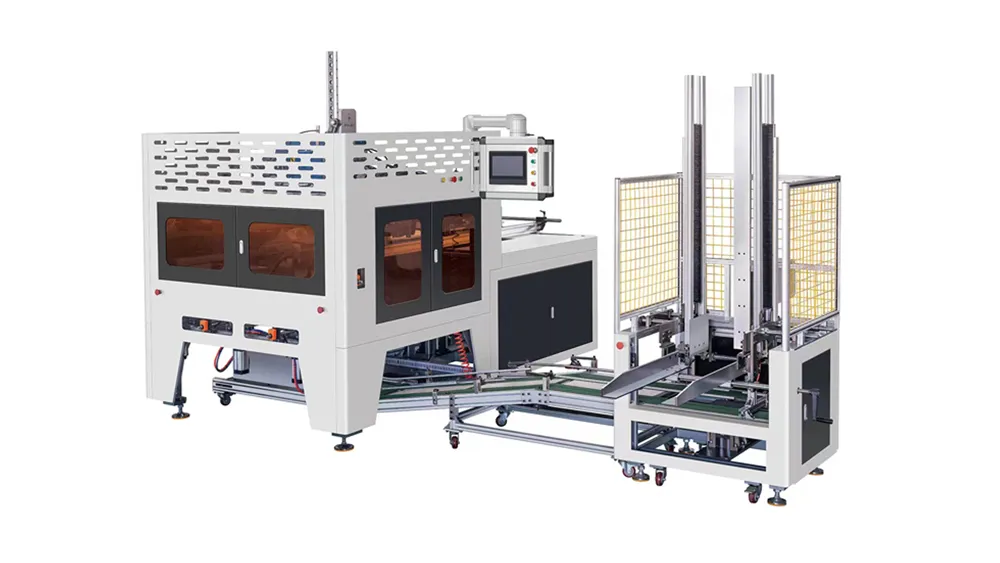

Automatic Feeding, Forming and Stacking

The machine integrates automatic bottom suction feeding, forming, conveying, and stacking in one process, improving production stability and reducing manual handling.

High Efficiency for Corrugated Packaging Production

With production speeds up to 50 boxes per minute, the machine is suitable for medium and large-scale corrugated tray manufacturing operations.

Product Video

FAQ: ZMH-1210 Corrugated Tray Forming Machine for Fruit & Vegetable Boxes

This machine is suitable for fruit trays, vegetable cartons, agricultural packaging trays, and corrugated transport boxes.
The machine supports 2.5–7mm cardboard and A/B/E/F flute corrugated board, suitable for heavy-duty packaging.
Yes. The machine supports quick mold changes to produce different box sizes and tray structures.
Yes. It integrates feeding, forming, glue spraying, conveying, and stacking into one automatic production process.
The machine can produce 20–50 corrugated trays per minute, depending on tray size and material.

Applications

  • Fruit packaging trays
  • Vegetable transport cartons
  • Corrugated produce boxes
  • Agricultural packaging trays
  • E-commerce corrugated packaging
  • Heavy-duty corrugated shipping trays
