Technical Specifications
HRY-320A Series
| Machine model | NRY-320A-4C | NRY-420A-4C | NRY-480A-4C | NRY-520A-4C |
| Machine color quantities | 4 colors | |||
| Maximum printing width | 320mm | 420mm | 480mm | 520mm |
| Maximum web width | 330mm | 430mm | 490mm | 530mm |
| Repeat printing length | 175-380mm | |||
| Total power | 15kw | 25kw | 26kw | 28kw |
| Registering precision | ±0.15mm | |||
| Die cutting station | one set | |||
| Waste paper rewinding device | one set | |||
| Laminating device | one set | |||
| Total air pressure | 0.6MP | |||
| Voltage | 380V/220V | |||
| Machine weight | 3000kg | 3200kg | 3500kg | 3700kg |
| Machine dimension | 2600*1300*2250 mm | |||
| Our machines are customizable to fit your unique production needs. | ||||
HRY-850A-4C Series
| Machine model | NRY-850A-4C | NRY-950A-4C | NRY-1000A-4C |
| Machine color quantities | 4 colors | ||
| Printing speed | 55-60m/min | ||
| Maximum web width | 860mm | 950mm | 1010mm |
| Maximum printing width | 850mm | 840mm | 1000mm |
| Maximum unwinding diameter |
1300mm
|
||
| Printing size |
175-380mm
|
||
| Total power | 45kw | 45kw | 50kw |
| Registering precision | ±0.10mm | ||
| Total air pressure | 0.6-0.8MP | ||
| Voltage | 380V±10% | ||
| Machine weight | 4500kg | 5000kg | 5500kg |
| Our machines can be tailored to your specific production requirements. | |||
Product Description
Product Overview: 4-Color Narrow Web Specialist

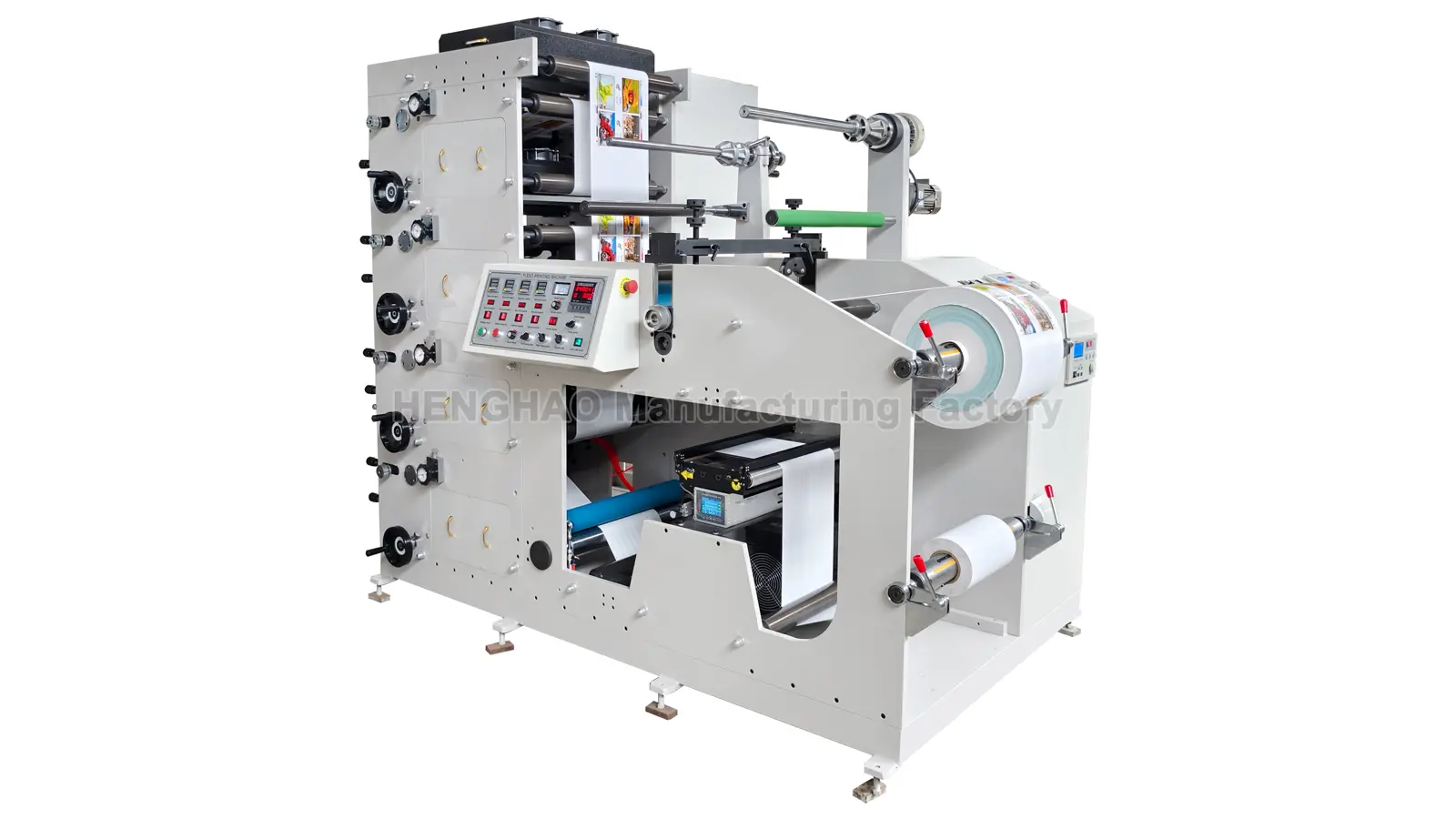

The NRY-320A is a high-performance 4-Color Stack Type Flexo Printing Machine engineered specifically for the narrow web label industry. With a printing width of 320mm, it offers the perfect capability to print full-color CMYK labels or multi-spot color stickers. Its vertical "Stack" design saves factory floor space while allowing operators easy access to each print station, making it an excellent choice for short-to-medium run label production.
Key Features & Technical Advantages
- 4-Color Versatility: Capable of printing high-quality graphics using 4 printing stations. Ideal for vibrant product labels, logos, and commercial stickers.
- Stack Type Structure: The independent vertical arrangement of print stations ensures stable performance and simplifies maintenance and cleaning.
- Wide Material Compatibility: Expertly handles various substrates including Self-Adhesive Paper, Craft Paper, Aluminum Foil, and Plastic Films (BOPP/PET) (with optional UV drying).
- Precision Tension Control: Equipped with an automatic tension controller and web guide system to ensure accurate color registration, even at high speeds.
- Compact & Durable: Built for 24/7 operation with low maintenance requirements, offering a superior lifespan compared to entry-level machines.
Applications
The NRY-320A is the industry standard for producing:
- Commercial Labels: Food & Beverage labels, Cosmetic stickers.
- Industrial Packaging: Barcode tags, Security labels.
- Narrow Web Films: Shrink sleeves and small candy wrappers.
Get a Quote: Contact Newtop Machinery today to discuss how the NRY-320A can upgrade your label printing business.
Product Video
FAQ: 4-Color Stack Flexo Printing Machine - NRY-320A | Narrow Web Label Press
Yes, absolutely. While the standard configuration uses IR drying for paper, we highly recommend upgrading to our UV Curing System for plastic films. UV ink dries instantly on non-absorbent materials like BOPP and PET, ensuring high gloss and scratch resistance for premium labels.
The NRY-320A delivers excellent registration accuracy (typically ±0.1mm). It features a 360° longitudinal registration device that allows operators to adjust the alignment of each color station precisely without stopping the machine, ensuring sharp and clear CMYK prints.
The main difference is structure and cost. Stack type machines (like the NRY-320A) have independent print stations stacked vertically. They are more compact, easier to operate, and significantly more affordable than CI machines. For narrow web label printing on paper and standard films, this Stack Type press offers a much faster Return on Investment (ROI).
