Technical Specifications
| Machine model | NRY-850A | NRY-950A | NRY-1000A |
| Machine color quantities | 5 colors | ||
| Printing speed | 55-60m/min | ||
| Maximum web width | 860mm | 950mm | 1010mm |
| Maximum printing width | 850mm | 940mm | 1000mm |
| Maximum unwinding diameter | 1300mm | ||
| printing size | 175-380mm | ||
| Total power | 45kw | 45kw | 50kw |
| Registering precision | ±0.10mm | ||
| Total air pressure | 0.6-0.8MP | ||
| Voltage | 380V±10% | ||
| Machine weight | 4500kg | 5000kg | 5500kg |
| Machine dimension | 4800*2050*2250 mm | 4800*2150*2250 mm | 4800*2250*2250 mm |
| Our machines can be customized to suit specific production needs, offering flexibility in size, configuration, and features. | |||

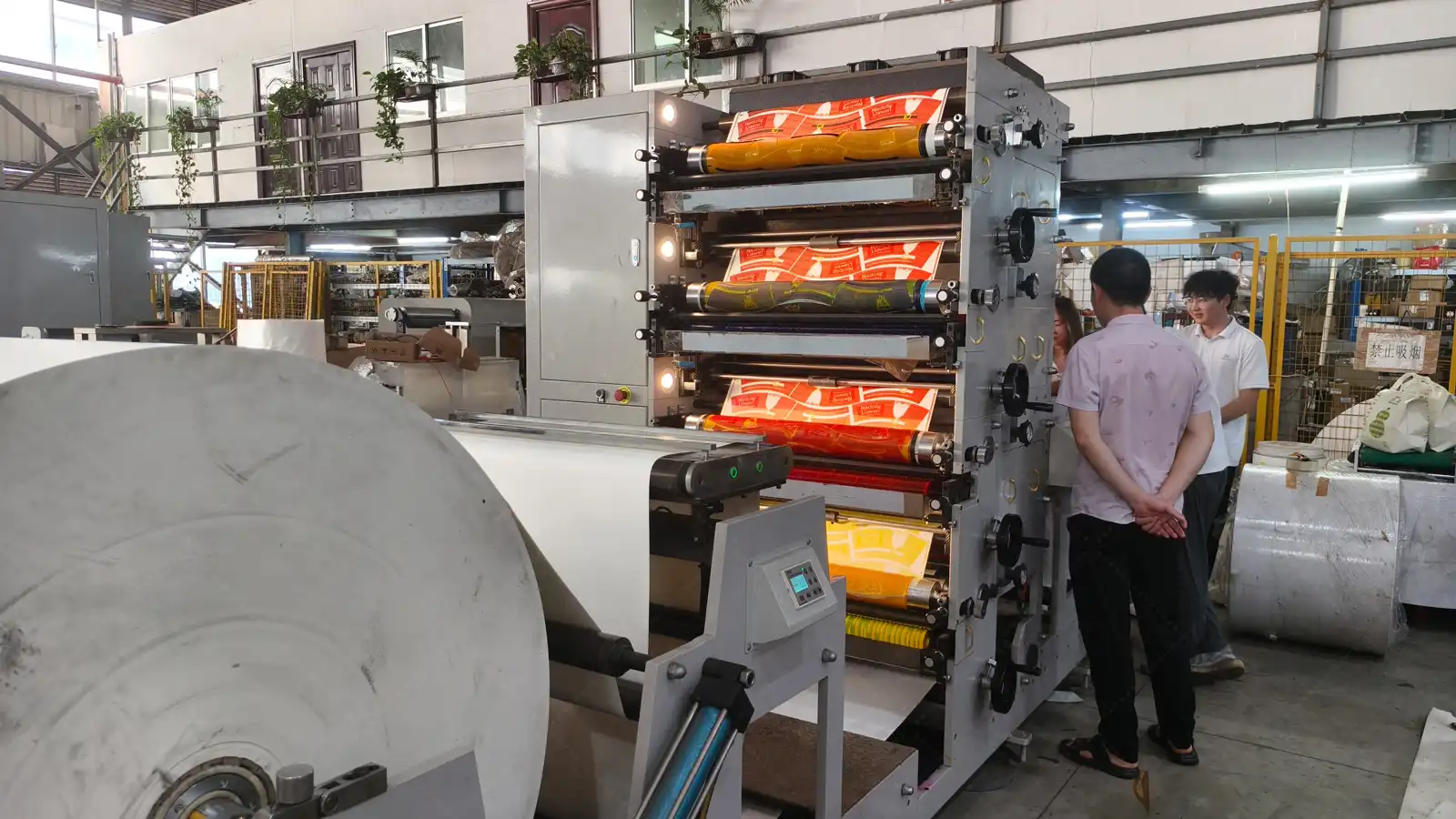

Product Description
High-Performance Printing Solution for Paper Packaging
The NRY-850A is a specialized Roll-to-Roll Flexographic Printing Machine engineered specifically for the high-efficiency production of paper cups, paper bowls, and food containers. Unlike generic printing presses, this machine is optimized to handle the specific tension and ink requirements of PE Coated Paper and Ivory Board.
It serves as the critical upstream equipment for your forming line, transforming raw paper rolls into vibrant, branded packaging materials with precision and speed.
Key Advantages
- 5-Color Precision: Equipped with high-quality Ceramic Anilox Rollers to ensure sharp registration accuracy. It handles complex brand logos, multi-color patterns, and gradients flawlessly.
- Eco-Friendly Operation: Fully compatible with Water-Based Inks (essential for food safety compliance) and UV Inks. The integrated IR/UV drying system ensures instant curing, preventing smudging during high-speed rewinding.
- Stable Tension Control: Features a fully automatic Magnetic Powder Brake system. This ensures the paper roll maintains constant tension from unwinding to rewinding, significantly reducing material waste and web breaks.
- Industrial Durability: Built with a heavy-duty cast iron frame (Wallboard structure) to minimize vibration at high speeds, ensuring a long operational lifespan of over 10 years.

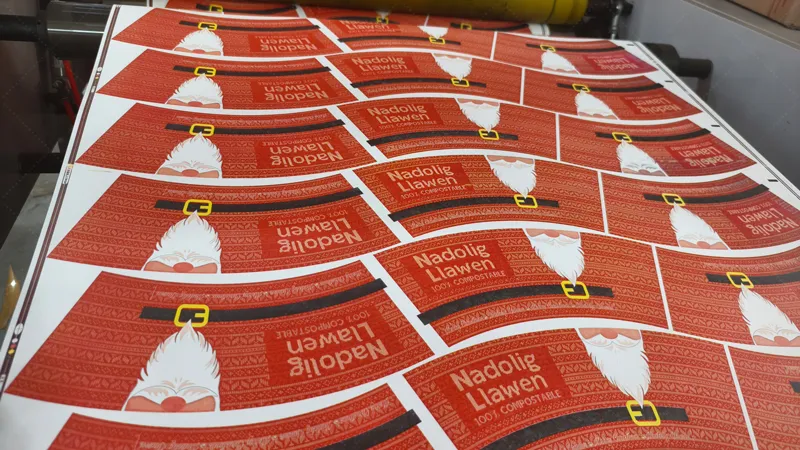

Application Range
The NRY-850A is versatile enough to support a wide variety of disposable food packaging products:
- Disposable Paper Cups: Coffee cups, cold drink cups, double-wall cups.
- Paper Bowls & Tubs: Ice cream bowls, soup containers, salad tubs.
- Paper Lunch Boxes: Burger boxes, takeaway food containers.
- Paper Shopping Bags: Bakery bags, kraft paper bags.
Success Case: Installation in Dubai
Our engineering team recently completed a successful project for a client in Dubai, UAE. The client required a machine capable of switching between Single PE and Double PE paper rolls for different coffee brands.
We installed the NRY-850A and performed a multi-material test run on-site. The machine printed flawlessly on both materials with just one setup, allowing the client to run full production immediately.
Manufacturer Service Guarantee
As a direct manufacturer (Wenzhou Henghao), Newtop provides more than just machinery. We offer customized printing widths (600mm-1200mm) to match your die-cutting size. Every machine comes with Global On-Site Installation support and Lifetime Remote Technical Guidance via video call.
