Technical Specifications
| Item | Specification |
|---|---|
| Model | ZM-1050MT |
| Suitable Material | 90–2000g/㎡ Cardboard, ≤4mm Corrugated Board, Plastic Sheet |
| Max Sheet Size | 1060 × 770 mm |
| Min Sheet Size | 450 × 370 mm |
| Max Die Cutting Size | 1050 × 750 mm |
| Max Foil Stamping Size | 1050 × 750 mm |
| Max Embossing Size | 1050 × 750 mm |
| Inner Chase Size | 1100 × 790 mm |
| Max Die Cutting Speed | 7500 sheets/hour |
| Max Foil Stamping Speed | 6500 sheets/hour |
| Max Working Pressure | 300 Tons |
| Working Accuracy | ±0.1 mm |
| Adjustable Temperature | 20–200°C |
| Heating Zones | 12 Zones |
| Foil Shafts | 3 Longitudinal + 2 Transversal |
| Max Foil Diameter | 220 mm |
| Main Motor Power | 15 KW |
| Total Power | 46 KW |
| Machine Size | 6050 × 4200 × 2260 mm |
| Machine Weight | 17 Tons |
Machine Structure
Non-stop High-Speed Feeder
The machine adopts a non-stop high-speed feeder with strong sheet suction for stable material feeding. It features feeder anti-collision protection, pre-stacking paper function, and non-stop feeding system to improve production efficiency and reduce downtime.
Stable Feed Table System
The feed table is driven by chain movement to ensure stable and reliable sheet transfer. It includes imported belts, electrical front lays, double sheet detection, push-pull integrated side guides, and antistatic stainless steel surface for accurate sheet feeding.
High Precision Host Station
The host station features electrical pressure adjustment and imported intermittent mechanism to ensure running accuracy. The worm gear transmission system from Taiwan improves stability and extends the service life of key transmission parts.
Quick Change Frame and Bottom Plate
The machine is equipped with one-button chase locking system and integrated bottom plate design for faster job changes. Imported German steel plates and quick-lock cutting board frame with center positioning improve operating convenience and stability.
Automatic Delivery System
The delivery system features electrical auxiliary delivery, adjustable braking brush, pneumatic non-stop sampling, and optional tape inserter to ensure smooth product collection and efficient finished sheet delivery.
10.5-inch Intelligent Control System
The operating system includes a 10.5-inch industrial color touch screen with easy operation and visualized functions. It supports production monitoring, data statistics, and automatic screen off function for energy saving.
Modular Electrical System
The electrical system adopts modular design with imported electrical components for reliable performance. The remote maintenance module enables fast troubleshooting and convenient maintenance, helping reduce machine downtime.
Product Description

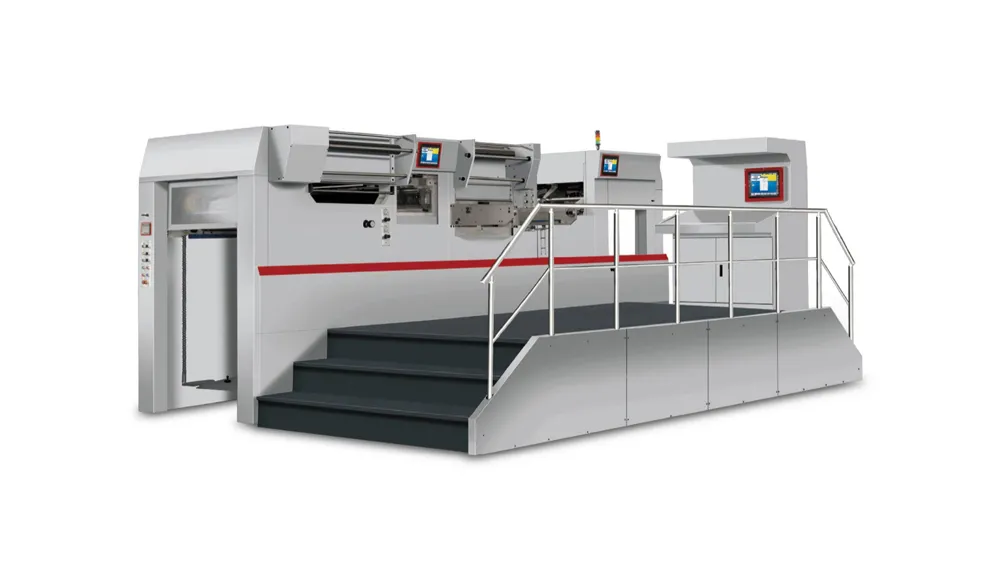

Automatic Hot Foil Stamping and Die Cutting Machine for Luxury Packaging
The ZM-1050MT Hot Foil Stamping and Die Cutting Machine is designed for high-end packaging production requiring foil stamping, embossing, indentation, and precision die cutting. It is widely used for premium printed cartons and luxury packaging products.
Suitable for High-End Packaging Applications
This machine is ideal for manufacturing cigarette boxes, wine boxes, gift boxes, cosmetic cartons, electronics packaging, and other premium printed products requiring metallic foil and embossed effects.
Advanced Hot Foil Stamping System
Equipped with 12 independent heating zones, adjustable temperature control from 20–200°C, and multiple foil shafts, the machine ensures consistent foil stamping quality while reducing material waste.
Precision Die Cutting and Embossing Performance
With a working accuracy of ±0.1mm and maximum pressure of 300 tons, the machine delivers stable die cutting and embossing performance for complex packaging structures and luxury printing requirements.
Fully Automatic Production with Intelligent Control
The machine integrates automatic feeding, foil stamping, embossing, die cutting, and delivery into one automated workflow, improving productivity and reducing manual labor.
