Technical Specifications
| Item | Specification |
|---|---|
| Model | ZM-1050M |
| Suitable Material | 90–2000g/㎡ Cardboard, ≤4mm Corrugated Board, Plastic Sheet |
| Max Sheet Size | 1060 × 770 mm |
| Min Sheet Size | 450 × 370 mm |
| Max Die Cutting Size | 1050 × 750 mm |
| Inner Chase Size | 1100 × 790 mm |
| Max Die Cutting Speed | 7500 sheets/hour |
| Max Working Pressure | 300 Tons |
| Working Accuracy | ±0.1 mm |
| Max Feeding Height | 1350 mm |
| Max Delivery Height | 1200 mm |
| Main Motor Power | 11 KW |
| Total Power | 17.6 KW |
| Air Supply | 0.6 MPa / 0.37 m³/min |
| Machine Size | 5050 × 4200 × 2260 mm |
| Machine Weight | 16 Tons |
Machine Structure

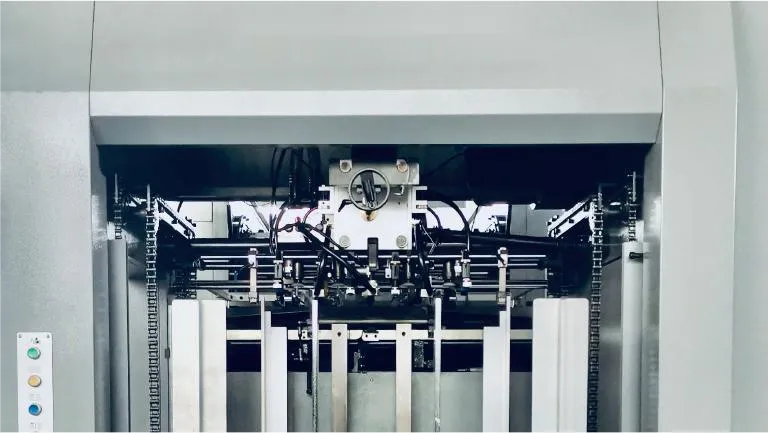

Non-stop High-Speed Feeder
The machine adopts a non-stop high-speed feeder with strong sheet suction for stable material feeding. It features feeder anti-collision protection, pre-stacking paper function, and non-stop feeding system to improve production efficiency and reduce downtime.

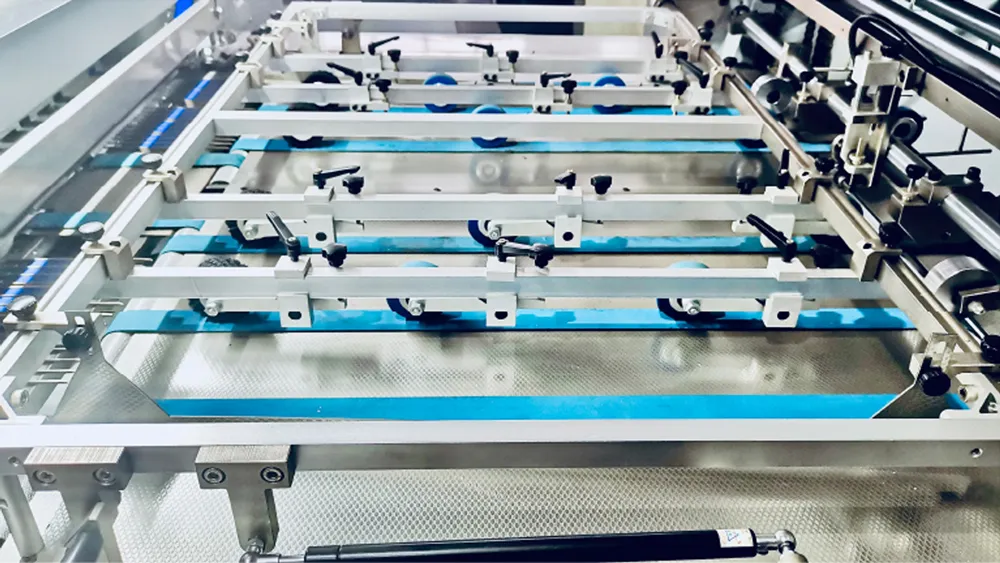

Stable Feed Table System
The feed table is driven by chain movement to ensure stable and reliable sheet transfer. It includes imported belts, electrical front lays, double sheet detection, push-pull integrated side guides, and antistatic stainless steel surface for accurate sheet feeding.

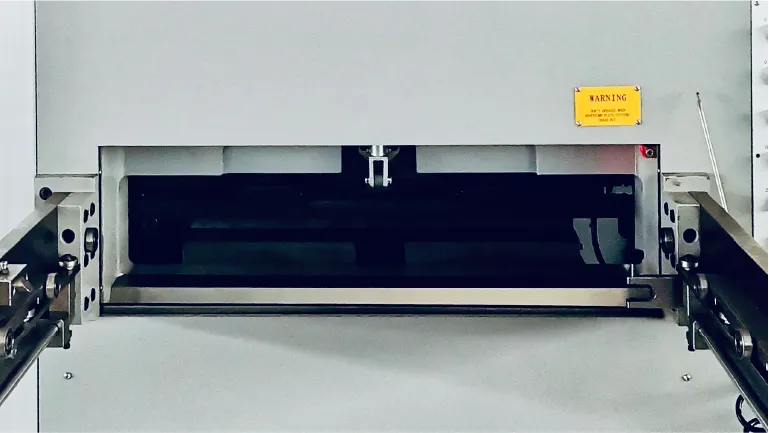

High Precision Host Station
The host station features electrical pressure adjustment and imported intermittent mechanism to ensure running accuracy. The worm gear transmission system from Taiwan improves stability and extends the service life of key transmission parts.
Quick Change Frame and Bottom Plate
The machine is equipped with one-button chase locking system and integrated bottom plate design for faster job changes. Imported German steel plates and quick-lock cutting board frame with center positioning improve operating convenience and stability.

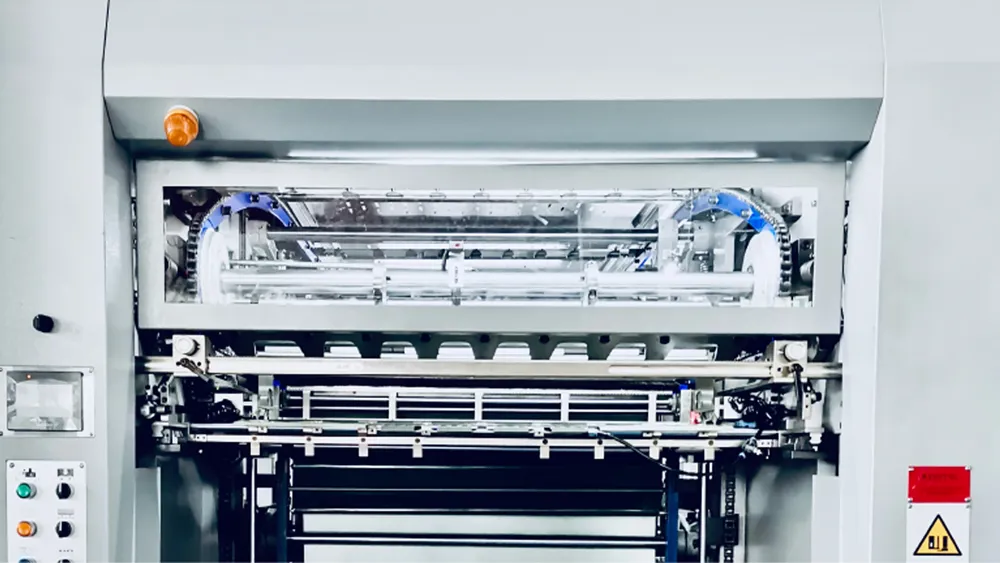

Automatic Delivery System
The delivery system features electrical auxiliary delivery, adjustable braking brush, pneumatic non-stop sampling, and optional tape inserter to ensure smooth product collection and efficient finished sheet delivery.

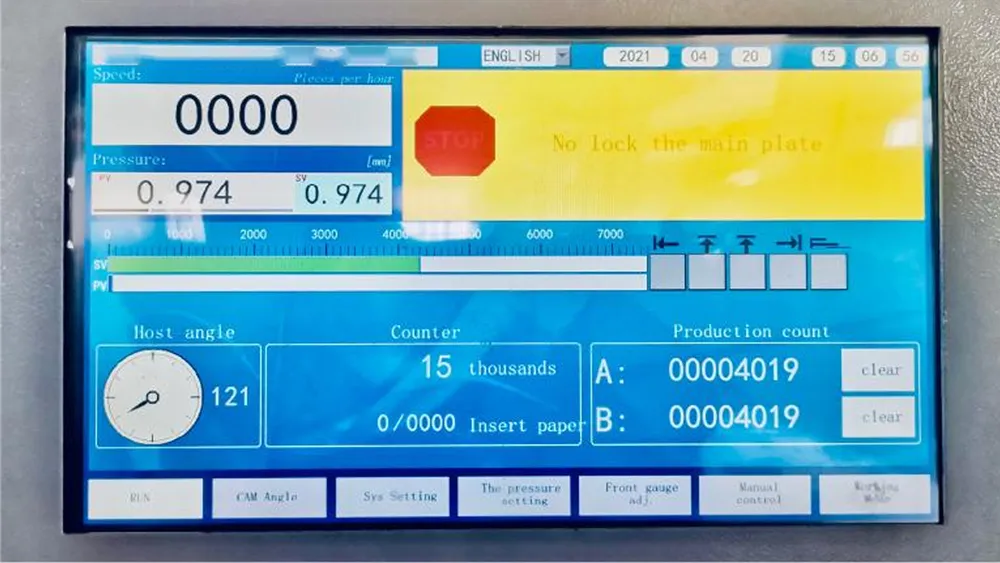

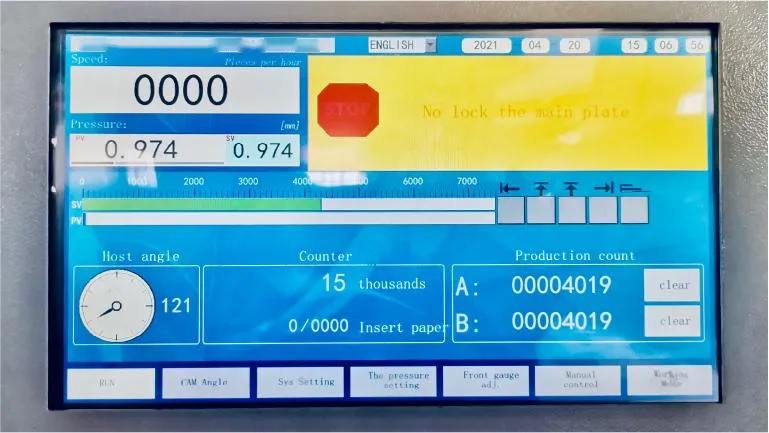

10.5-inch Intelligent Control System
The operating system includes a 10.5-inch industrial color touch screen with easy operation and visualized functions. It supports production monitoring, data statistics, and automatic screen off function for energy saving.
Modular Electrical System
The electrical system adopts modular design with imported electrical components for reliable performance. The remote maintenance module enables fast troubleshooting and convenient maintenance, helping reduce machine downtime.
Applications
- Luxury gift boxes
- Cosmetic packaging cartons
- Wine and liquor boxes
- Cigarette packaging boxes
- Electronics and appliance cartons
- Premium printed packaging products
Product Description
Automatic Foil Stamping and Die Cutting Machine for Premium Packaging
The ZM-1050M Automatic Foil Stamping and Die Cutting Machine is designed for high-end packaging production requiring hot foil stamping, embossing, indentation, and die cutting. It is widely used for luxury cartons, cosmetic boxes, wine boxes, gift packaging, and premium printed products.
High Precision Foil Stamping and Die Cutting
With a working accuracy of ±0.1mm and maximum pressure of 300 tons, the machine ensures stable foil stamping and precise die cutting for complex packaging designs and premium finishing requirements.
Fully Automatic Production Process
The machine integrates automatic feeding, foil stamping, die cutting, stripping, and delivery into one continuous process, improving efficiency and reducing manual labor for packaging manufacturers.
Suitable for Multiple Packaging Materials
The machine supports cardboard from 90–2000g/㎡, corrugated board up to 4mm, and plastic sheets, making it suitable for a wide range of packaging applications.
Intelligent Control System for Stable Operation
Equipped with industrial touch screen, modular electrical system, remote maintenance module, and automatic monitoring functions, the machine ensures stable operation and easier production management.
