Technical Specifications
| Item | Specification |
|---|---|
| Model | ZM-610/900 |
| Sheet Material | PP, PET, PS, PVC, HIPS, ABS |
| Sheet Thickness | 0.3–2.5 mm |
| Sheet Width | 400–850 mm |
| Max Forming Area | 780 × 610 mm |
| Upper Forming Depth | 150 mm |
| Lower Forming Depth | 130 mm |
| Production Speed | 15–40 Strokes/min |
| Heating Rated Power | 180 KW |
| Mold Height | 450–550 mm |
| Air Pressure | 0.5–0.8 MPa |
| Voltage | 380V / 50Hz |
| Total Power | 275 KW |
| Machine Dimension | 14m × 2.4m × 2.8m |
| Machine Weight | 10.5 Tons |
Applications
- Disposable lunch boxes
- Food container lids
- Plastic trays
- Plastic bowls and cups
- Fresh food packaging trays
- Seedling trays
Product Description

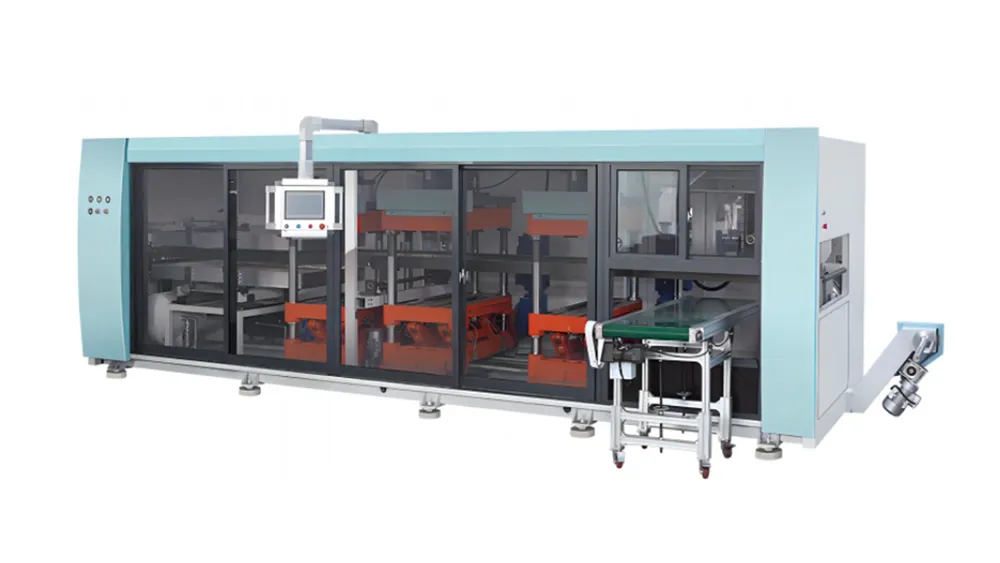

Fully Automatic Multi-Station Thermoforming Machine for Food Packaging
The ZM-610/900 Multi-Station Thermoforming Machine is designed for fully automatic production of plastic food packaging products such as lunch boxes, lids, bowls, trays, cups, and seedling trays.
Compatible with Multiple Thermoforming Materials
This machine supports PET, BOPS, HIPS, PP, PLA, PVC, and barrier materials, making it suitable for disposable food packaging, eco-friendly PLA containers, and rigid plastic packaging production.
Three-Station High Efficiency Thermoforming System
The three-station structure allows simultaneous forming, punching, and stacking operations, helping manufacturers improve efficiency, reduce labor costs, and save factory space.
Large Forming Area for Various Product Sizes
With a maximum forming area of 780 × 610mm and forming depth up to 150mm, the machine supports production of various plastic packaging products with different shapes and sizes.
PLC Intelligent Control for Stable Production
The machine adopts advanced PLC control system and intelligent temperature management to ensure accurate control of heating, pressure, and timing for stable product quality and consistent production.
