NTPFD-180 Square Bottom Paper Bag Machine | 200pcs/min High Speed

NTPFD-180 Square Bottom Paper Bag Machine | 200pcs/min High Speed

(1068) | In Stock

High Efficiency: Reduces cycle time by 30% with servo-motor drive.
Precision: ±0.01mm repeatability for complex forming.
Certified: CE & ISO 9001 Compliant standards.
Customizable: Worktable size and stroke tailored to needs.

Produce high-quality square bottom food bags at 200pcs/min with the NTPFD-180. Features Servo Control, Photocell Tracking, and Automatic Fault Detection. Ideal for bakery and cosmetic bags.

Download Catalog (0.91 MB)

1 Year Warranty

Global Shipping

24/7 Support

Technical Specifications

Parameter	Data
Model	NTPFD-180
Paper Bag Width	80 - 190 mm
Bag Bottom Size	50 - 100 mm
Tube Length	191 - 371 mm
Max Roll Paper Width	600 mm
Max Diameter of Material	1200 mm
Machine Speed	200 pcs/min
Paper Thickness	50 - 120 gsm
Main Motor Power	11 KW
Air Pressure	690 KPA
Machine Weight	5000 kg
Machine Size (L×W×H)	9200 × 1600 × 1750 mm

Product Description

The NTPFD-180 is a high-performance Automatic Square Bottom Paper Bag Making Machine, engineered with advanced international technology to meet the demands of modern packaging. Designed for efficiency and versatility, this machine specializes in producing square bottom paper bags from paper rolls.

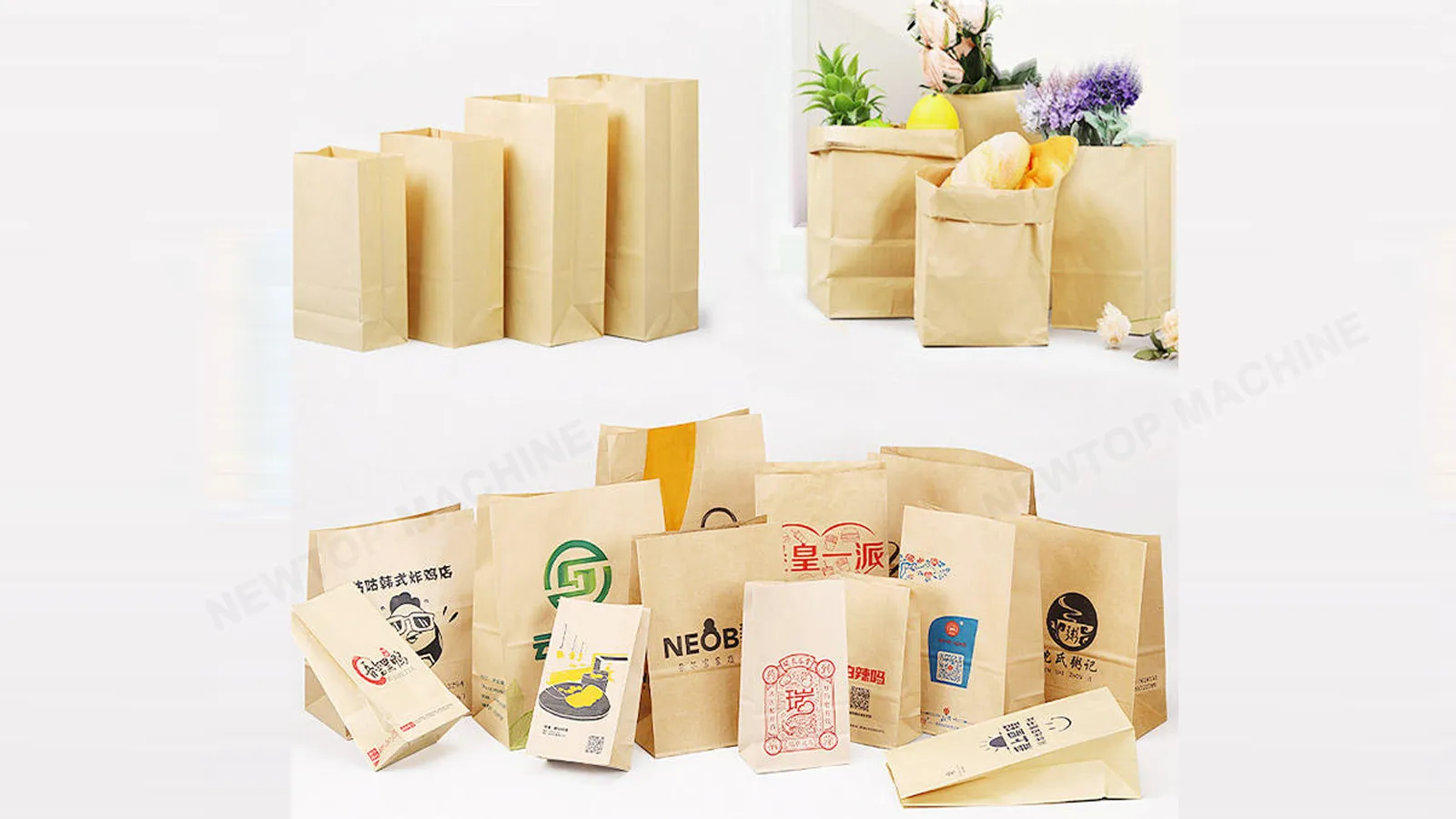

It features a fully automated process, including raw material feeding, tube forming, cutting, and bottom gluing. Controlled by a central PLC system with a Touch Screen interface, the NTPFD-180 ensures high-speed operation up to 200 bags per minute. It is the ideal equipment for producing a wide variety of paper bags, including food paper bags (bakery/bread bags) and cosmetics handle paper bags.

Key Features

1. Precision Servo System: Equipped with a high-grade servo system and photocell sensors. This ensures precise correction and tracking of printed materials, guaranteeing that your logo and graphics align perfectly on every bag.

2. Advanced Electric Control: The integrated electric control system promotes high-speed, high-precision motion control across the entire production line. It utilizes optical fiber detection for seamless integration.

3. User-Friendly Interface: The intuitive Touch Screen Display simplifies machine operation, allowing operators to adjust parameters (like bag length and speed) quickly without complex manual adjustments.

4. Automatic Glue System: The smart glue applicator system moves automatically in sync with the machine's running speed, ensuring consistent glue application without leakage or waste.

5. Intelligent Protection: An automatic fault detector and self-diagnosis system monitor the machine in real-time, stopping the line if an error occurs to reduce the chance of damaging the machine.

Need a sample of the square bottom bag?

Send us your required bag size (Width x Bottom x Length). We will confirm the best machine configuration for you.

Request a Quote & Video

FAQ: NTPFD-180 Square Bottom Paper Bag Machine | 200pcs/min High Speed

The NTPFD-180 is versatile and can handle various paper types with a thickness range of 50-120 gsm. It is compatible with Kraft paper, greaseproof paper (for food), and coated paper, making it perfect for bakery and retail industries.

Yes. The machine is equipped with a Servo System with Photocell Tracking. This technology accurately tracks color marks on pre-printed paper rolls to ensure the cutting position is precise, keeping your branding intact.

No, it is designed for ease of use. The entire operation is controlled by a PLC Touch Screen. Operators can input bag dimensions and speed settings directly on the screen, and the machine adjusts automatically, significantly reducing the learning curve.

Safety is a priority. The machine features an Automatic Fault Detector and Self-Diagnosis System. If paper jamming or mechanical errors occur, the machine will automatically stop and alert the operator, preventing damage to the equipment and reducing waste.
