Technical Specifications

Model ZM160
Production Capacity 120–160 pcs/min
Paper Weight 190–350gsm
Paper Type Single / Double PE coated paper
Cup Size Range 4–16 OZ
Power Supply 380V / 50Hz / 12KW
Air Consumption 0.5–0.8MPa / 0.4 m³/min
Machine Weight 2.95 Tons
Machine Dimensions 2600 × 1600 × 1800 mm
Collection Table Size 1300 × 1000 × 1700 mm

Machine Structure

paper cup machine structure
  1. Paper holder
  2. Paper fan preheating
  3. Ultrasonic sealing
  4. Cup pipe forming
  5. Cup turnplate
  6. Bottom punching
  7. Bottom paper preheating 1
  8. Bottom paper preheating 2
  9. Bottom paper folding
  10. Bottom knurling
  11. Cup curling
  12. Top curling 1
  13. Top curling 2
  14. Cup output
  15. Bottom feeding 1
  16. Bottom feeding 2

Product Description

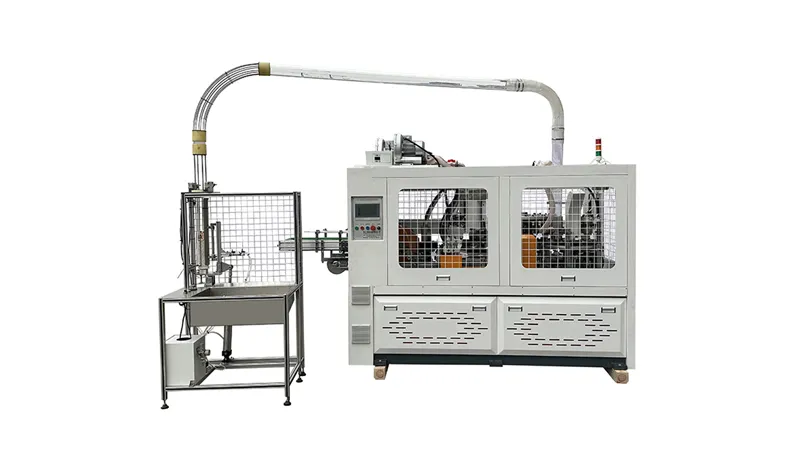

High Speed Paper Cup Making Machine for Large-Scale Production

The ZM160 Paper Cup Forming Machine is designed for high-speed production of disposable paper cups. With a capacity of up to 160 pcs per minute, it is ideal for large-scale beverage packaging manufacturers.

Advanced Multi-Turnplate Structure for Stability

The machine adopts a three-turnplate structure combined with open cam design, gear transmission, and longitudinal axis system. This ensures smooth operation, high precision, and long-term stability under high-speed conditions.

Complete Automatic Cup Forming Process

This machine integrates all processes including paper feeding, ultrasonic sealing, bottom feeding, heating, knurling, curling, discharge, and counting. It significantly reduces manual labor and ensures consistent product quality.

Reliable Control System with Safety Protection

Equipped with PLC control, servo feeding system, and photoelectric sensors, the machine guarantees stable performance. It also features automatic shutdown in case of malfunction to protect the equipment and reduce downtime.

Optional CCD Inspection for Quality Control

An optional CCD inspection system can automatically detect defective cups, such as damaged or contaminated products, helping reduce manual inspection and improve hygiene standards.

Product Video

FAQ: Paper Cup Machine 120–160 pcs/min Cup Forming Machine

This machine can reach a high production speed of 120–160 pcs per minute, making it suitable for large-scale manufacturing.
It can produce paper cups ranging from 4oz to 16oz, commonly used for coffee, tea, and beverage packaging.
The machine uses single or double PE coated paper with a thickness of 190–350gsm, suitable for food-grade applications.
The combination of servo control, PLC system, and multi-turnplate structure ensures stable performance and consistent quality at high speed.
Yes (optional). A CCD inspection system can be added to automatically detect defective cups and improve quality control.
