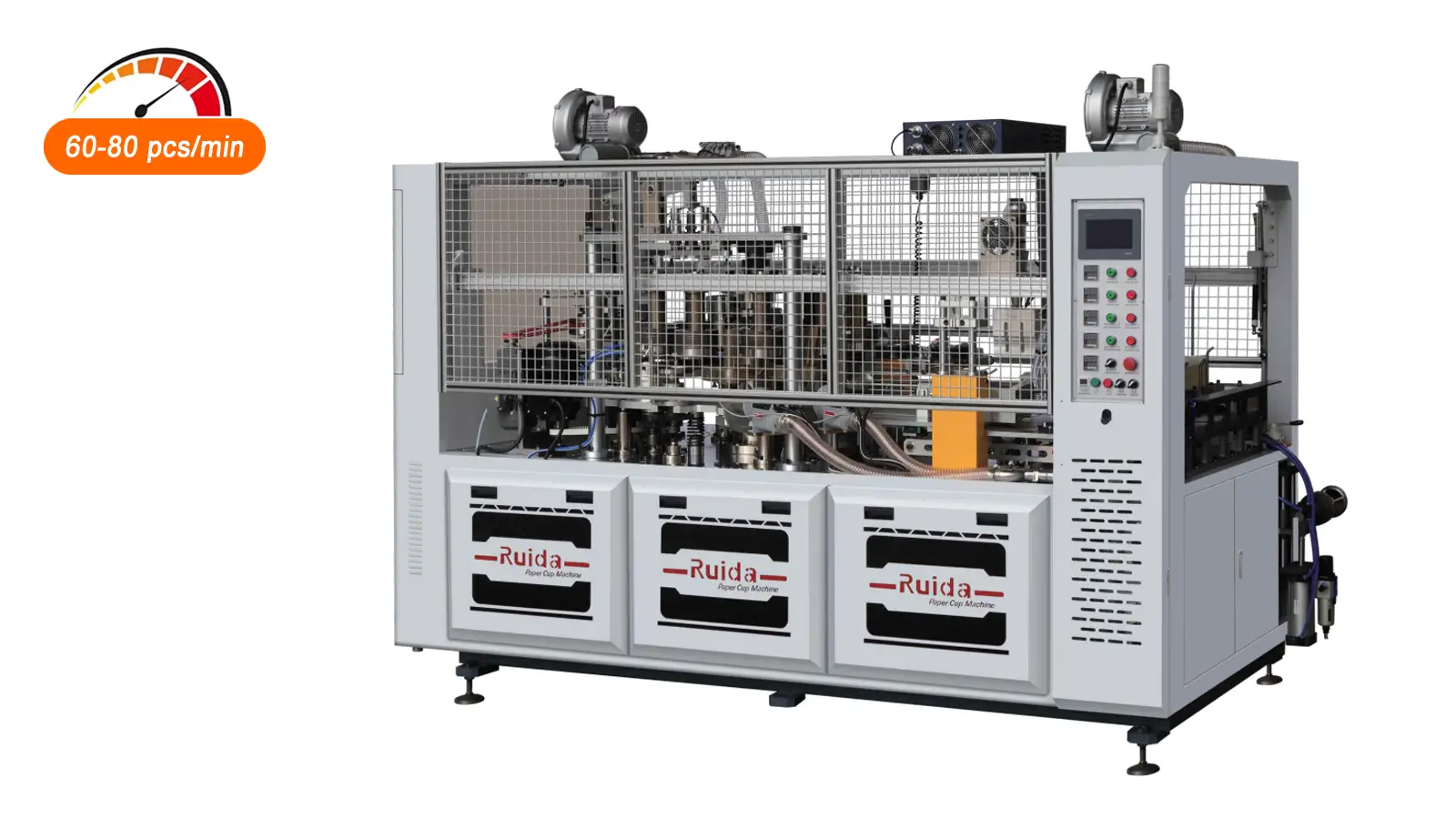

High Speed Paper Bucket Machine - NTP-XLF80 | 80pcs/min Large Tub Maker

High Speed Paper Bucket Machine - NTP-XLF80 | 80pcs/min Large Tub Maker

(543) | In Stock

High Efficiency: Reduces cycle time by 30% with servo-motor drive.
Precision: ±0.01mm repeatability for complex forming.
Certified: CE & ISO 9001 Compliant standards.
Customizable: Worktable size and stroke tailored to needs.

Produce large 70-170oz paper buckets at high speeds (60-80 pcs/min) with the NTP-XLF80. Advanced Tabletop design for Fried Chicken & Popcorn tubs. Servo driven.

Download Catalog (7.54 MB)

1 Year Warranty

Global Shipping

24/7 Support

Technical Specifications

Machine Model	NTP-XLF80DT	NTP-XLF80SLT
Bowl Specification	70-170oz	1000-1800ml
Bowl top	150-220mm
Bowl Bottom Diameter	100-180mm
Height	60-210mm	45-100mm
Paper Specifications	170-350g/㎡
Paper Material	Single and double PE/PLA/Non plastic coated paper
Production Speed	60-70pcs/min	70-80pcs/min
Total Power	18kw
Air Source	0.6m³/min
Machine Weight	5000kg
Packing Dimensions	370021602200mm	370022602200mm

Product Description

Product Overview: Double the Speed for Large Buckets

The NTP-XLF80 is a breakthrough in large-format container production. While traditional paper bucket machines run at slow speeds (30-40 pcs/min), the NTP-XLF80 utilizes an advanced Tabletop Structure and optimized transmission to achieve production speeds of 60–80 buckets per minute. Designed specifically for the 70oz to 170oz range, this machine is the ultimate efficiency solution for manufacturers producing Fried Chicken Buckets, Popcorn Tubs, and Family-Size Food Bowls.

Key Features & Structural Advantages

High-Speed Production: By upgrading to a longitudinal shaft structure and cylindrical indexing CAM, this machine doubles the output of conventional bucket machines, significantly reducing your cost per unit.
Clean Tabletop Design: Similar to our high-end bowl machines, the NTP-XLF80 separates the forming area (top) from the transmission area (bottom). This prevents oil contamination, ensuring 100% hygiene for food packaging.
Two Specialized Models:
- Model DT: Speed 60-70 pcs/min (Ideal for very tall buckets).
- Model SLT: Speed 70-80 pcs/min (Optimized for standard large bowls).
Robust & Durable: All lower transmission gears are bathed in a Shower-Type Automatic Lubrication System, ensuring smooth operation and long lifespan even under 24/7 high-speed running conditions.
Precision Control: Features PLC centralized control with Servo Motor Feeding and Photoelectric Tracking to minimize waste and ensure every bucket is formed perfectly.

Ideal Applications

The NTP-XLF80 is engineered for high-volume food service demands:

QSR Packaging: KFC-style Fried Chicken Buckets (85oz, 130oz).
Cinema Concessions: Large Popcorn Tubs (85oz - 170oz).
Catering: Family-sized Soup and Salad Bowls.

Maximize Your Output: Why use slow machines when you can run at 80 pcs/min? Contact Newtop Machinery to upgrade your bucket production line today.

FAQ: High Speed Paper Bucket Machine - NTP-XLF80 | 80pcs/min Large Tub Maker

Standard heavy-duty bucket machines typically run at 30-40 pieces per minute. The NTP-XLF80 runs at 60-80 pieces per minute. This means one NTP-XLF80 can do the work of two older machines, saving you factory floor space and labor costs while doubling your daily output.

It is designed for the 70oz to 170oz range. It handles Top Diameters from 150mm to 220mm and Heights up to 210mm. This covers almost all standard sizes for Fried Chicken Buckets and Popcorn Tubs found in the market.

Yes, very important. Large buckets have a large surface area inside the machine. The Tabletop design keeps the paper completely isolated from the grease and gears below. This guarantees that your large food containers remain clean and meet strict food safety regulations required by major fast-food chains.
