Technical Specifications

Model ZM200
Production Capacity 160–200 pcs/min
Paper Weight 190–350gsm
Paper Type Single / Double PE coated paper
Cup Size Range 5–16 OZ
Power Supply 380V / 50Hz / 12KW
Air Consumption 0.5–0.8MPa / 0.4 m³/min
Machine Weight 3.8 Tons
Machine Dimensions 2800 × 1100 × 1800 mm
Collection Table Size 1300 × 1000 × 1700 mm

Machine Structure

paper cup machine structure
  1. Paper holder
  2. Paper fan preheating
  3. Ultrasonic sealing
  4. Cup pipe forming
  5. Cup turnplate
  6. Bottom punching
  7. Bottom paper preheating 1
  8. Bottom paper preheating 2
  9. Bottom paper folding
  10. Bottom knurling
  11. Cup curling
  12. Top curling 1
  13. Top curling 2
  14. Cup output
  15. Bottom feeding 1
  16. Bottom feeding 2

Product Description

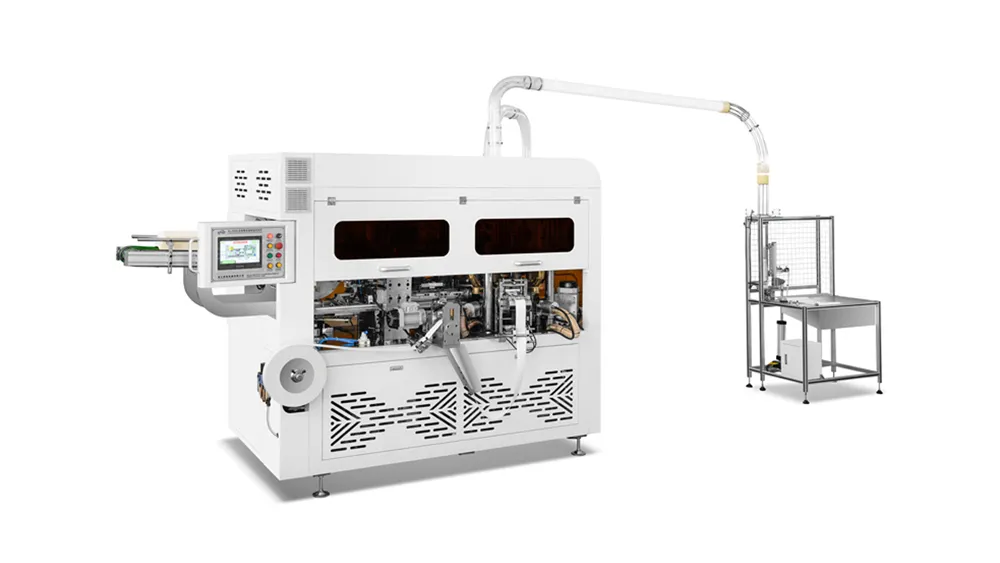

Ultra High Speed Paper Cup Machine for Maximum Output

The ZM200 Paper Cup Forming Machine is designed for ultra high-speed production of disposable paper cups, reaching up to 200 pcs per minute. It is ideal for large-scale manufacturers seeking maximum productivity and efficiency.

Advanced Multi-Turnplate Structure for High-Speed Stability

The machine adopts a three-turnplate system combined with open cam design, gear transmission, and longitudinal shaft structure. This ensures smooth operation, high precision, and reliable performance even at maximum speed.

Fully Integrated Automatic Cup Forming System

All processes including paper feeding, ultrasonic sealing, bottom feeding, heating, knurling, curling, discharge, and counting are integrated into one machine. This reduces labor costs and ensures consistent product quality.

Intelligent Control System with Safety Protection

Equipped with PLC control, servo feeding system, and photoelectric sensors, the machine ensures stable operation. It also features automatic shutdown protection in case of malfunction, minimizing downtime.

Optional CCD Inspection for Premium Quality Control

An optional CCD detection system can automatically identify defective cups, reducing manual inspection and improving hygiene and quality standards for food-grade production.

Paper Cup Production Samples

Paper Cup Production Samples

Product Video

FAQ: 200 pcs/min Paper Cup Machine | High Speed Cup Making Machine

This machine can reach up to 200 pcs per minute, making it ideal for high-volume production.
It supports paper cups from 5oz to 16oz, suitable for coffee, tea, and beverage applications.
The machine uses single or double PE coated paper with a weight range of 190–350gsm.
The combination of servo system, PLC control, and multi-turnplate structure ensures stable operation even at high speeds.
Yes (optional). A CCD inspection system can be installed to detect defective cups automatically.
