Technical Specifications
| Model | ZM50 |
|---|---|
| Production Capacity | 30–50 pcs/min |
| Paper Weight | 150–500gsm |
| Paper Type | Single / Double PE coated paper |
| Bowl Capacity | 30–190 OZ (1000ml–5000ml) |
| Size Range | Top: 120–220 mm / Bottom: 90–180 mm / Height: 100–200 mm |
| Power Supply | 380V / 50Hz / 12KW |
| Air Consumption | 0.5–0.8MPa / 0.4 m³/min |
| Machine Weight | 3.5 Tons |
| Machine Dimensions | 4500 × 2100 × 1700 mm |
Product Description
Large Capacity Paper Bowl Machine for Food Containers

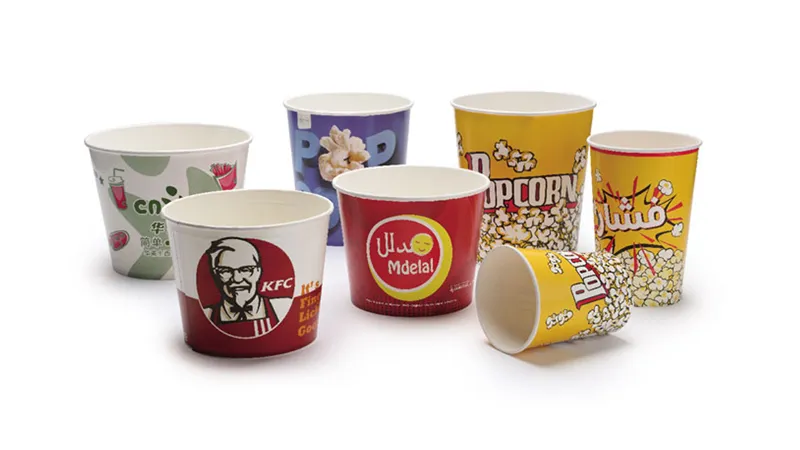

The ZM50 Paper Bowl Forming Machine is designed for producing large-size disposable paper bowls and containers. It is ideal for applications such as salad bowls, soup bowls, takeaway buckets, and food delivery packaging.
Wide Size Range for Different Packaging Needs
This machine supports bowl capacities from 30oz up to 190oz (1000ml–5000ml), making it suitable for both medium and large food containers. Custom molds are available to meet specific production requirements.
Stable Multi-Station Forming System

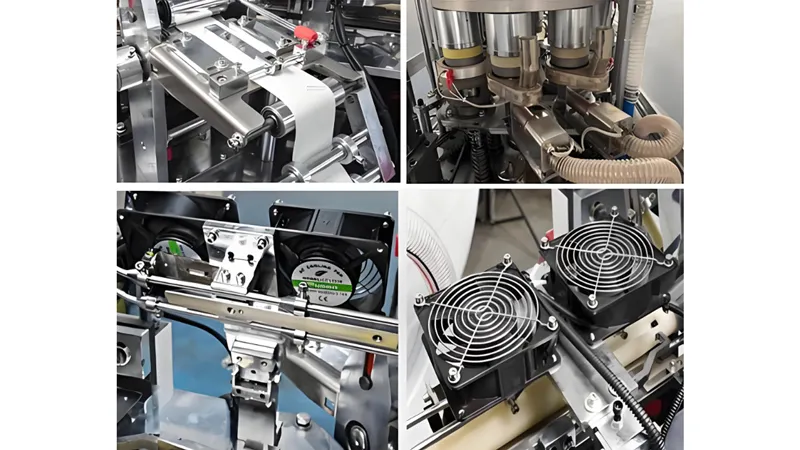

The machine integrates multiple processes including paper feeding, sealing, heating, bottom cutting, knurling, curling, and collecting. This ensures consistent product quality and stable operation.
Heavy-Duty Design for Large Bowl Production
With a strong structure and optimized forming system, the machine is designed to handle thicker materials and larger container sizes while maintaining stable performance.
Automatic Operation with Reduced Labor Requirement
The fully automatic system reduces manual work, improves production efficiency, and ensures consistent output quality for large-scale food packaging production.
