Technical Specifications

Model ZM80-120
Production Capacity 80–120 pcs/min
Paper Weight 190–350gsm
Paper Type Single / Double PE coated paper
Cup Size Range 4–16 OZ
Power Supply 380V / 50Hz / 12KW
Air Consumption 0.5–0.8MPa / 0.4 m³/min
Machine Weight 3.25 Tons
Machine Dimensions 2600 × 1650 × 1900 mm
Collection Table Size 1300 × 1000 × 1700 mm

Machine Structure

paper cup machine structure

The ZM80-120 Paper Cup Making Machine is designed with a complete multi-station forming structure. Each working station supports stable paper feeding, cup body sealing, bottom forming, curling, output, and continuous production.

  1. Paper holder
  2. Paper fan preheating
  3. Ultrasonic sealing
  4. Cup pipe forming
  5. Cup turnplate
  6. Bottom punching
  7. Bottom paper preheating 1
  8. Bottom paper preheating 2
  9. Bottom paper folding
  10. Bottom knurling
  11. Cup curling
  12. Top curling 1
  13. Top curling 2
  14. Cup output
  15. Bottom feeding 1
  16. Bottom feeding 2

Product Description

Automatic Paper Cup Making Machine for Food-Grade Cup Production

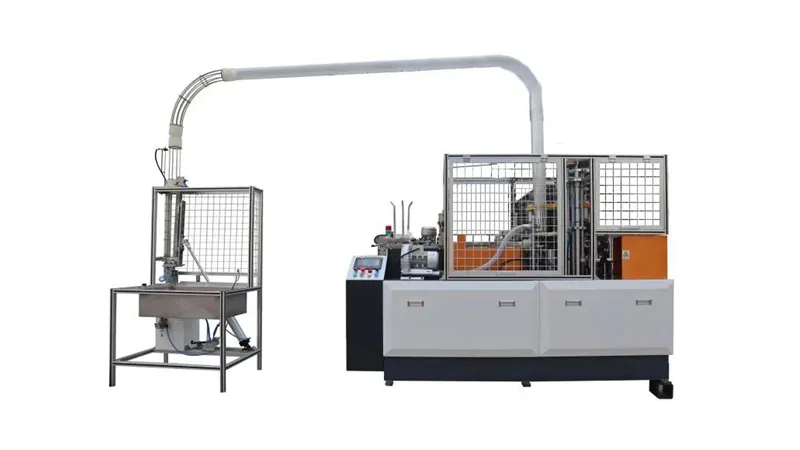

The ZM80-120 Paper Cup Making Machine is a fully automatic solution designed for producing disposable paper cups used in beverages such as coffee, tea, and soft drinks. It integrates all forming processes into one machine, improving production efficiency and product consistency.

High-Speed Production with Stable Multi-Station Design

Using a multi-turnplate structure with open cam and gear transmission, the machine achieves stable operation at speeds up to 120 pcs per minute. This design ensures smooth cup forming and long-term production reliability.

Complete Cup Forming Process in One Machine

The machine integrates paper feeding, ultrasonic sealing, bottom punching, heating, knurling, curling, and discharge. This full automation reduces manual labor and ensures consistent product quality throughout production.

Advanced Control System for Efficient Operation

Equipped with PLC control, servo feeding system, and photoelectric sensors, the machine ensures precise control and stable performance. It also features automatic shutdown protection in case of malfunction, improving operational safety.

Optional Inspection System for Quality Control

An optional CCD inspection system can detect defective cups such as damaged or stained products. This helps reduce manual inspection and improves hygiene standards in food-grade production.

Product Video

FAQ: Automatic Disposable Cup Machine ZM-120 Paper Cup Making Machine

This machine can produce paper cups ranging from 4oz to 16oz, suitable for coffee, tea, and beverage packaging applications.
The machine uses single or double PE coated paper with a weight range of 190–350gsm, which is commonly used for food-grade cups.
Yes. It is a fully automatic system that integrates feeding, sealing, forming, curling, discharge and counting in one machine.
The machine uses servo feeding, PLC control, and multi-station forming structure, ensuring stable performance and consistent output at high speeds.
Yes (optional). A CCD inspection system can be installed to automatically detect defective cups, reducing manual inspection and improving quality control.
