Technical Specifications
| Item | Specification |
|---|---|
| Paper Layers | 3–24 Layers |
| Inner Diameter | 50–250 mm |
| Wall Thickness | 1–15 mm |
| Online Cutting Length | 1000–5000 mm |
| Winding Type | Four Heads Double Belts |
| Working Speed | 1–20 meters/min |
| Speed Regulation | Inverter Control |
| Cutting System | Single High-Speed Steel Blade |
| Gluing Method | Double Sides |
| Length Fixing | Infrared Control |
| Working Air Pressure | 0.6 MPa |
| Operator Required | 2–3 Persons |
| Power Supply | 380V / 3Phase / 50Hz |
| Machine Dimensions | 4500 × 1950 × 1900 mm |
| Machine Weight | 4200 kg |

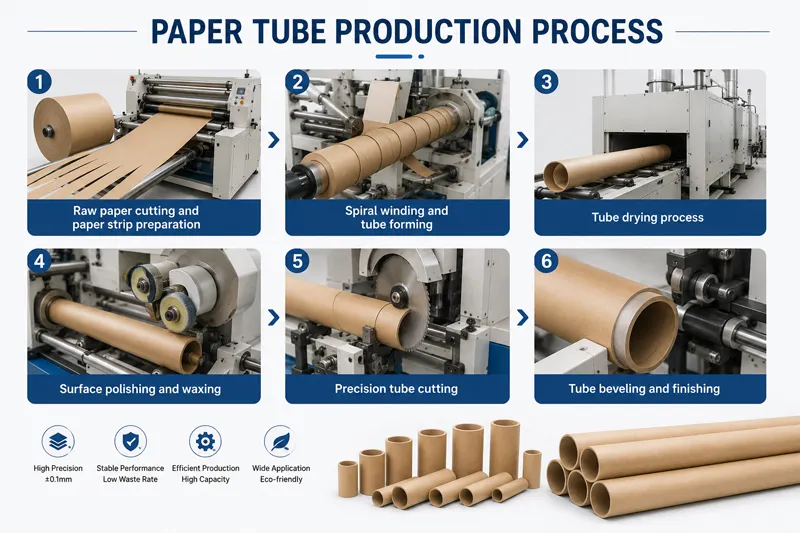

Paper Tube Production Process
- Raw paper cutting and paper strip preparation
- Spiral winding and tube forming
- Tube drying process
- Surface polishing and waxing
- Precision tube cutting
- Tube beveling and finishing
Product Description
Industrial Paper Tube Making Machine for Heavy-Duty Paper Cores
The ZM50-250 Paper Tube Making Machine is designed for producing large and thick industrial paper tubes and paper cores. It is widely used for stretch film cores, textile tubes, packaging cores, and other heavy-duty industrial applications.

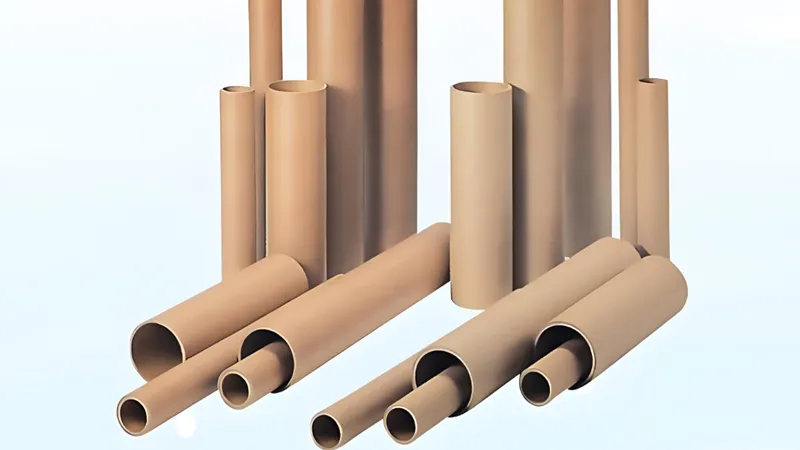

Wide Tube Size Range for Flexible Production
The machine supports inner diameters from 50mm to 250mm and wall thicknesses from 1mm to 15mm. It is suitable for manufacturing various paper tube specifications according to different industry requirements.
Stable Automatic Production with PLC Control
Equipped with PLC control system, touch screen interface, and inverter speed regulation, the machine provides stable operation, easy parameter adjustment, and efficient production management.
High-Efficiency Online Cutting System
The machine features a single high-speed steel blade online cutting system with cutting lengths from 1000mm to 5000mm. Infrared length fixing ensures accurate tube cutting during continuous production.

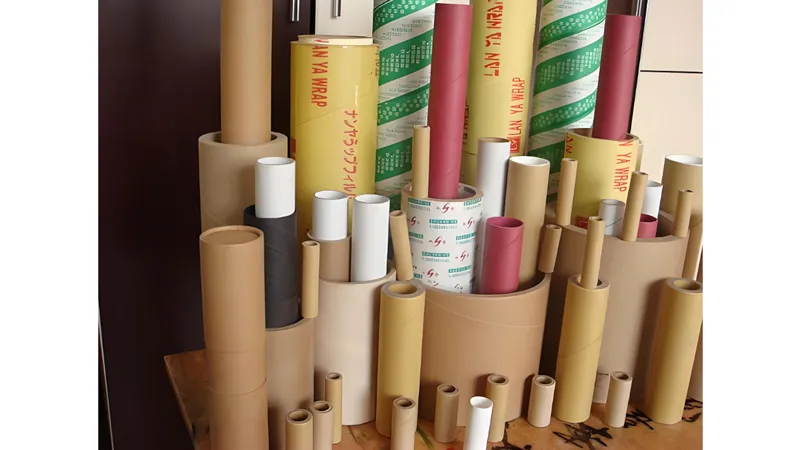

Suitable for Industrial Core Manufacturing
With its strong structure and multi-layer winding system, the machine is ideal for producing strong paper cores used in film packaging, textile winding, adhesive tapes, and other industrial applications.
