Technical Specifications
| Item | Specification |
|---|---|
| Model | ZM660/850 |
| Sheet Material | PP, PET, PS, PVC, HIPS, ABS |
| Sheet Thickness | 0.3–2.5 mm |
| Sheet Width | 400–850 mm |
| Max Forming Area | 850 × 650 mm |
| Upper Forming Depth | 150 mm |
| Lower Forming Depth | 130 mm |
| Production Speed | 15–40 Strokes/min |
| Heating Rated Power | 180 KW |
| Mold Height | 450–550 mm |
| Air Pressure | 0.5–0.8 MPa |
| Voltage | 380V / 50Hz |
| Total Power | 200 KW |
| Machine Dimension | 14m × 2.4m × 2.8m |
| Machine Weight | 18 Tons |

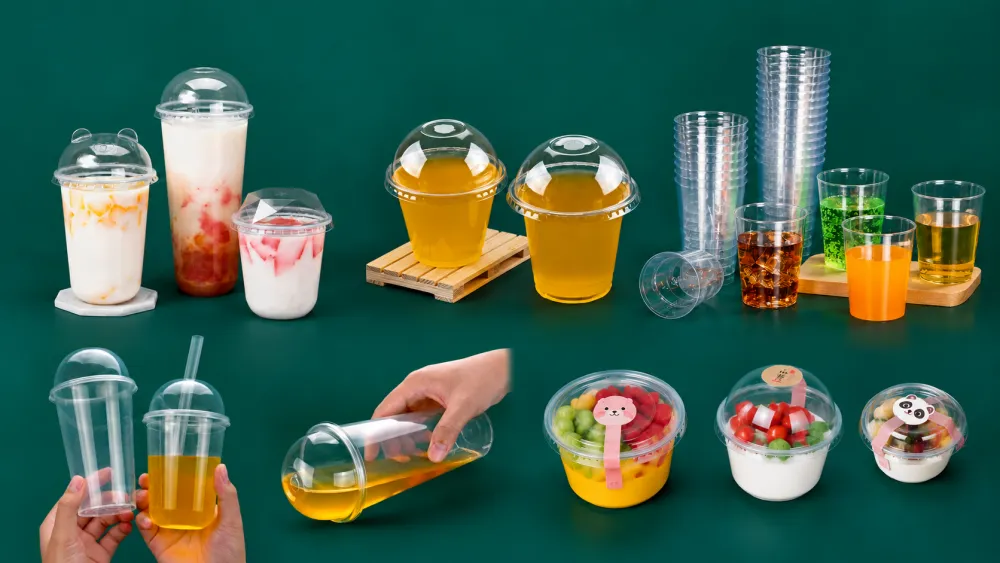

Applications
- Disposable plastic cups
- Milk tea cups
- Cold drink cups
- Disposable plastic bowls
- Frozen food cups
- Seedling trays
Product Description
Full Servo Hydraulic Plastic Cup Thermoforming Machine
The ZM-660/850 Plastic Cup Thermoforming Machine is designed for automatic production of plastic cups, bowls, milk tea cups, aviation cups, frozen food cups, seedling trays, and other disposable plastic containers.
Suitable for Multiple Plastic Materials
The machine supports PP, PET, PLA, PVC, HIPS, BOPS, and other thermoforming materials, making it suitable for disposable food packaging and eco-friendly biodegradable cup production.
Full Servo Hydraulic Control System
The machine adopts a full servo hydraulic control system to ensure smooth operation, stronger forming power, and more stable product quality during high-speed production.
Large Forming Area and High Production Speed
With a maximum forming area of 850 × 650mm and production speed up to 40 strokes per minute, the machine is suitable for medium and large-scale disposable cup manufacturing.
PLC Intelligent Touch Screen Control
The touch screen control system supports electrical adjustment, recipe storage, temperature control, and remote maintenance, helping operators reduce workload and improve production efficiency.
