Technical Specifications
| Item | Specification |
|---|---|
| Model | ZM-450 / ZM-500 |
| Machine Model | ECI-GJ450L |
| Production Speed | 20–35 Times/min |
| Maximum Forming Depth | 50 mm |
| Maximum Forming Area | 260 × 450 mm |
| External Air Source | <0.2 m³/min |
| Air Pressure | 0.4–0.7 MPa |
| Total Power | 25 KW |
| Machine Dimension | 4200 × 950 × 1700 mm |
| Machine Weight | 2500 KG |

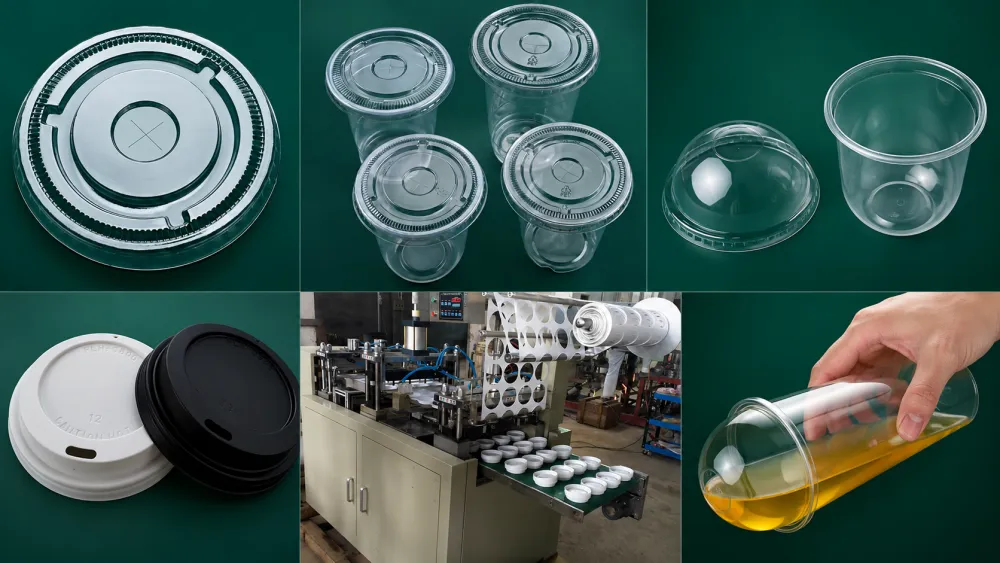

Applications
- Milk tea cup lids
- Coffee cup lids
- Cold drink lids
- Food container lids
- Takeaway packaging covers
- Disposable plastic lids
Product Description

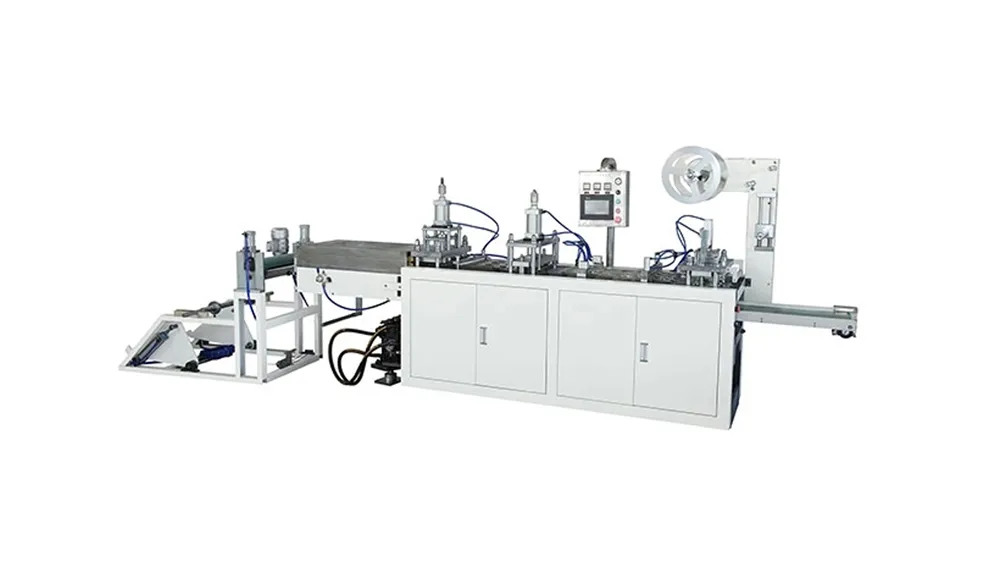

Automatic Plastic Lid Thermoforming Machine
The ZM-450/500 Plastic Lid Thermoforming Machine is designed for automatic production of plastic lids used for milk tea cups, coffee cups, food containers, takeaway packaging, and disposable beverage packaging.
Suitable for Disposable Lid Production
This machine is ideal for manufacturing disposable cup lids and food container covers with stable forming quality and efficient production performance.
Stable Hydraulic or Servo Forming System
The forming system can be driven by hydraulic or servo motors to provide strong power and stable operation. The four-column guide rail structure ensures smooth mold movement and precise forming quality.
Touch Screen Intelligent Control
The machine adopts a touch screen control system with full electrical adjustment, making operation easier and helping operators quickly adjust production settings.
Energy Saving and Efficient Production
With intelligent temperature control, aluminum alloy cooling system, and automatic lubrication, the machine improves production stability while reducing energy consumption and maintenance cost.
