Technical Specifications
| Item | Specification |
|---|---|
| Model | ZM-750 |
| Sheet Material | PP, PET, PS, PVC, HIPS, ABS |
| Sheet Thickness | 0.3–2.0 mm |
| Sheet Width | 500–720 mm |
| Max Extrusion Capacity | 150–180 kg/h |
| Total Power | 150 KW |
| Main Motor Power | 55 KW |
| Voltage | 380V / 50Hz / 3P / 4 Line |
| Screw Diameter | Φ110 mm |
| Screw L/D Ratio | 33:1 |
| Maximum Screw Speed | 80 RPM |
| Heating Power | 10 KW |
| Die Width | 800 mm |
| Maximum Extrusion Width | 720 mm |
| Upper Pressure Roller | Φ350 × 850 mm |
| Lower Pressure Roller | Φ350 × 850 mm |
| Cooling Roller | Φ350 × 850 mm |
| Traction Motor Power | 3 KW |
| Machine Weight | 6 Tons |
| Machine Dimension | 11 × 1.5 × 2.3 m |

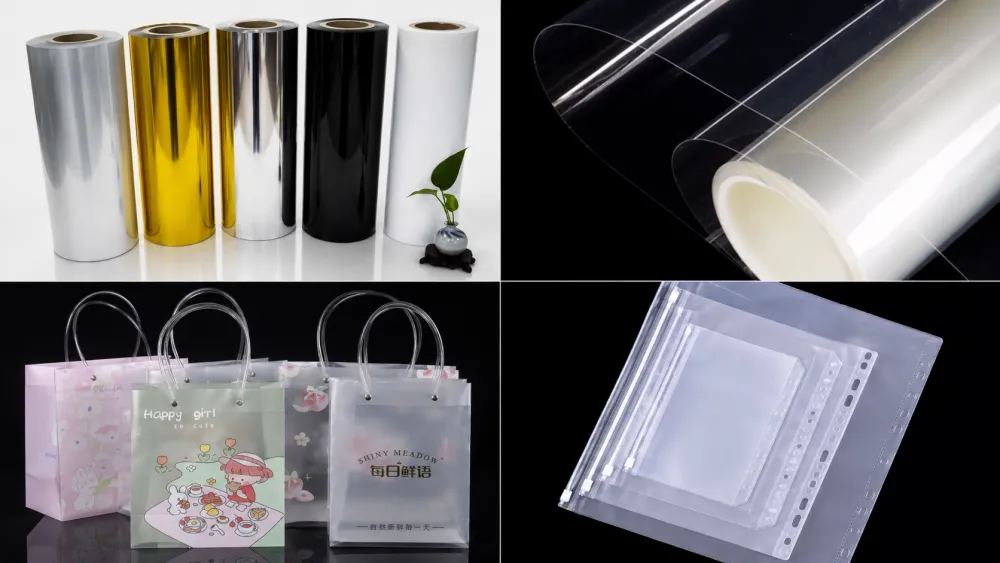

Applications
- Thermoforming plastic sheets
- Disposable food packaging sheets
- Plastic cup and tray sheet production
- Medical packaging materials
- Agricultural film materials
- Industrial plastic sheet products
Product Description
Plastic Sheet Extruder for Thermoforming Sheet Production
The ZM-750/1000 Plastic Sheet Extruder is designed for manufacturing plastic sheets used in thermoforming, food packaging, medical packaging, and industrial plastic products. It is suitable for producing PP, PET, PS, PVC, HIPS, and ABS plastic sheets.
Suitable for Multiple Plastic Materials
The machine supports a wide range of plastic materials including PP, PET, PS, PVC, HIPS, and ABS, making it suitable for food packaging sheets, disposable container production, and thermoforming applications.
Stable Plasticizing and High Extrusion Efficiency
The screw and barrel are made of nitrided 38CrMoAl alloy material with excellent wear resistance and corrosion resistance, ensuring stable plasticizing performance and longer service life.
Continuous Production with Hydraulic Screen Changer
The double-station hydraulic screen changing system allows continuous screen replacement without stopping production, helping manufacturers improve productivity and reduce downtime.
Designed for Thermoforming Production Lines
This machine is commonly used together with thermoforming machines for producing plastic cups, food trays, lunch boxes, lids, and disposable packaging products.
