Technical Specifications
| Item | Specification |
|---|---|
| Model | ZM-75&42-1000 |
| Screw Type | ZM Twin Screw Extruder |
| Sheet Material | PP, PET, PVC |
| Sheet Thickness | 0.2–1.5 mm |
| Sheet Width | 1000 mm |
| Max Extrusion Capacity | 400–500 kg/h |
| Total Power | 350 KW |
| Running Power | 200 KW |
| Main Motor Power | 132 KW |
| Die Effective Width | 1200 mm |
| Roller Effective Width | 1300 mm |
| Screw Diameter | 71 mm |
| L/D Ratio | 44:1 |
| Barrel Hardness | HV1050 |
| Screw Hardness | HV950 |
| Heating Power | 60 KW |
| Voltage | 380V / 50Hz / 3 Phase |
| Machine Dimension | 32 × 6 × 4 m |
| Roller Size | Φ350 / Φ450 / Φ550 mm |

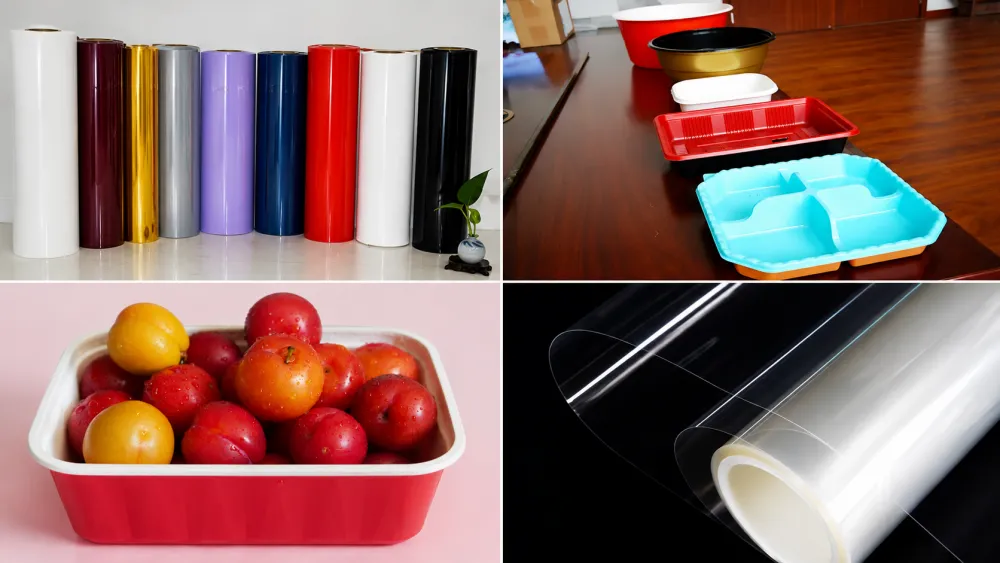

Applications
- Plastic cups and airline cups
- Milk tea cups and bowls
- Disposable lunch boxes
- Fruit and vegetable packaging trays
- Medical packaging materials
- Thermoforming plastic sheets
Product Description
Twin Screw Plastic Sheet Extruder for Thermoforming Sheet Production
The ZM-75&42-1000 Twin Screw Plastic Sheet Extruder is designed for manufacturing high-quality plastic sheets used in thermoforming production lines. It is suitable for producing PET, PP, and PVC sheets for disposable food packaging and industrial applications.
Suitable for Food Packaging and Thermoforming Products
The extruded sheets are widely used for airline cups, milk tea cups, bowls, disposable lunch boxes, fruit and vegetable trays, medical packaging, and thermoformed plastic products.
High Output Twin Screw Extrusion System
Compared with standard sheet extruders, the twin screw system provides higher output capacity up to 400–500kg/h with more stable plasticizing performance and better material mixing quality.

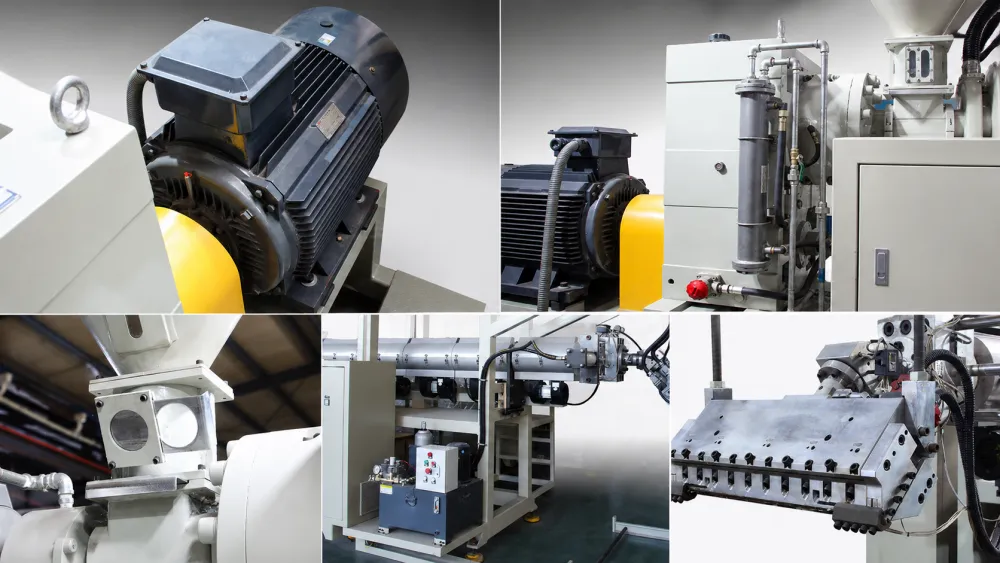

Continuous Production with Hydraulic Screen Changer
The double-station hydraulic screen changing system allows continuous mesh replacement without stopping production, helping manufacturers improve productivity and reduce downtime.
Designed for High Efficiency Thermoforming Production Lines
This machine is commonly used together with thermoforming machines to produce plastic cups, lunch boxes, lids, food trays, and disposable packaging products.
