Technical Specifications
| Item | Specification |
|---|---|
| Model | ZMH-4030 |
| Material Thickness | 250–450g/㎡ Cardboard, B/E/F Flute Corrugated Board |
| Production Speed | 15–25 Boxes/min |
| Cardboard Stacking Height | 700 mm |
| Stacked Weight | 80 kg |
| Glue Capacity | 5 L |
| Noise Level | ≤80 dB |
| Machine Dimensions | 2675 × 1485 × 1925 mm |
| Machine Weight | 1.2 Tons |
| Machine Power | 8 KW |
| Power Supply | 380V / 50Hz |
| Air Source | 120–160 L/min |
Supported Box Specifications
| Parameter | Range |
|---|---|
| Package Size A | 270–700 mm |
| Package Size B | 210–600 mm |
| Carton Length (L) | 150–400 mm |
| Carton Width (W) | 80–300 mm |
| Carton Height (H) | 25–60 mm |
Machine Features
- Imported Glue Spraying System: Equipped with automatic glue compensation for stable bonding quality
- Multi-Functional Folding Design: Supports single-wall and double-wall box folding
- Automatic Feeding System: Bottom suction feeding with automatic forming, conveying, and stacking
- PLC Intelligent Control: Integrated photoelectric tracking and human-machine interface for stable operation
- Versatile Box Production: Suitable for luxury rigid boxes and premium packaging applications
Product Description
Automatic Rigid Box Making Machine for Premium Packaging

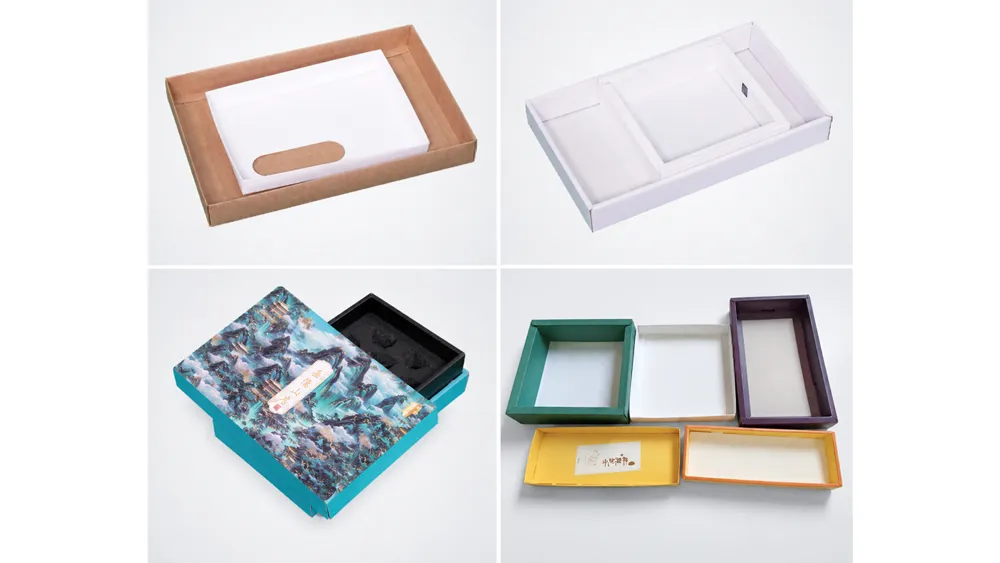

The ZMH-4030 Rigid Box Making Machine is designed for automatic production of high-end rigid boxes used in gift packaging, cosmetics, jewelry, mobile phones, watches, and luxury consumer products.
Suitable for Multiple Premium Box Applications
This machine supports single-wall and double-wall rigid box production using cardstock, kraft paper, and corrugated board materials. It is ideal for premium packaging manufacturers requiring stable and consistent box quality.
Automatic Folding and Forming System
The machine integrates automatic feeding, folding, conveying, and stacking into one continuous process, helping reduce labor requirements and improve production efficiency.
PLC Intelligent Control for Stable Operation
Equipped with PLC control system, photoelectric tracking, gas source detection, and human-machine interface, the machine ensures stable production and easy operation.
Designed for Luxury Packaging Production
With precise folding and reliable glue spraying system, the machine is suitable for producing rigid boxes with premium appearance and stable structure.
